MACH SB 30 Auto

Stock Number

cmu/0464

Height

1730mm

Drilling depth

150mm

Weight

200kg

MACH SB 40 Auto

Stock Number

cmu/0464

Height

1730mm

Drilling depth

150mm

Weight

200kg

MACH 1224 PLC

Stock Number

cmu/0462

Table size

300 x 600mm

Max. grinding length

Longitudinal 600mm

Max. grinding width

Crosswise 300mm

MACH SG818 PLC

Stock Number

cmu/0461

Table Size

203 x 460mm

Max. grinding length

Longitudinal 480mm

Max Distance From Table Surfacr To Spindle Centerline

460mm

MACH SB 40

Stock Number

cmu/0463

DRILLING CAPACITY

42mm

DRILLING DEPTH

150mm

TAPPING CAPACITY

M16

4th-/5th-Axis Units

MACH 1440-V Trainer Lathe

SWING OVER BED

356 mm diameter

SWING OVER CROSS SLIDE

220 mm diameter

CENTRE HEIGHT

178 mm

MACH 1330-G Trainer Lathe

SWING OVER BED

330 mm diameter

SWING OVER CROSS SLIDE

195 mm diameter

CENTRE HEIGHT

165 mm

Tooling And Cutting Tools

Workholding

Bar Feeders/Loaders

Workpiece And Tooling Probes

MACH L-1860/L-1880

CENTRE HEIGHT

Up to 231 mm

SWING IN GAP

Up to 710 mm

DISTANCE BETWEEN CENTRES

1000 mm/1500 mm/2000 mm

MACH X-Tract

Chuck-eez® - The Power Chuck Lubricant

MACH 220E

Spindle speed

550W/3000rpm

Wheel size

150mm x 25mm x 32mm

Machine weight

14.3kg

MACH 150E

Spindle speed

550W/3000rpm

Wheel size

150mm x 25mm x 32mm

Machine weight

14.3kg

MACH WSP 150M

MACH WSP 100M

MACH WSP 75M

MACH WSP 50M

MACH WSP 100P

MACH WSP 75P

MACH WSP 50P

MACH WSP 30P

MACH WSP 20P

MACH SG818 Auto

Stock Number

cmu/0461

Table Size

203 x 460mm

Max. grinding length

Longitudinal 480mm

Max Distance From Table Surfacr To Spindle Centerline

460mm

MACH 200TB

Spindle speed

750W/3000rpm

Wheel size

200mm x 25mm x 32mm

Machine weight

21.0kg

MACH 200EB

Spindle speed

650W/3000rpm

Wheel size

200mm x 25mm x 32mm

Machine weight

21.0kg

MACH 200ES

Spindle speed

650W/3000rpm

Wheel size

150mm x 25mm x 32mm

Machine weight

18.3kg

MACH 150ES D

Spindle speed

550W/3000rpm

Wheel size

150mm x 25mm x 32mm

Machine weight

14.3kg

MACH 150 / 150X

Machine weight

100kg/114kg

Machine dimensions

1025 x 500 x 1000mm

Grinding belt

150 x 2000mm

MACH 100 / 100X

Grinding belt

100 x 2000mm

Speed

3000rpm

Grinding table size

605mm

MACH JBS 2000/2.0Metal Cutting Shears

Size

2250 x 1708 x 1100mm

Working length

2025mm

Sheet thickness

2.0mm

MACH JBS 1250/3.0Metal Cutting Shears

Size

1700 x 1708 x 1100mm

Working length

1275mm

Sheet thickness

3.0mm

MACH JBS 2000/3.0Metal Cutting Shears

Size

2300 x 1708 x 1200mm

Working length

2025mm

Sheet thickness

3.0mm

MACH VS-2 SP

Table travel (x-axis)

890 mm (with power feed)

Saddle travel (y-axis)

390 mm

Quill travel

127 mm

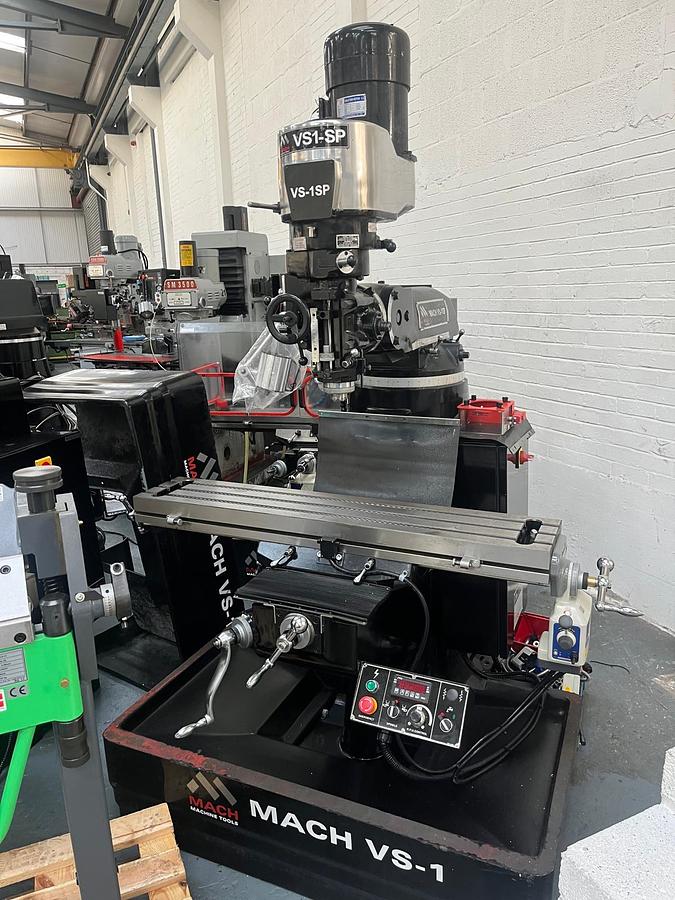

MACH VS-1 SP

Table travel (x-axis)

850 mm (with power feed)

Saddle travel (y-axis)

305mm

Quill travel

127 mm

MACH JBS 1250/4.0Metal Cutting Shears

Working length

1275mm

Sheet thickness

4.00mm

Cutting angle

2.4 degree

MACH 280 GSHE / GSHTBand Saw

Saw blade

2450 x 27 x 0.9mm

Saw speed

70m/min (GSHE); 35-70m/min (GSHT)

Size

1200 x 510 x 1460mm

MACH 220 GSHE / GSHTBand Saws

Saw blade

2085 x 20 x 0.9mm

Saw speed

80m/min (GSHE); 40-80m/min (GSHT)

Size

1100 x 510 x 1460mm

MACH 250A-SBBand Saw

Round cutting capacity at 90 degrees

250mm/10"

Round cutting capacity at 45 degrees

190mm/7.5"

Rectangular cutting capacity at 90 degrees

200mm x 450mm/8" x 17.5"

MACH SB 30Drilling Machine

Stock Number

cmu/0464

Height

1730mm

Drilling depth

150mm

Weight

200kg

MACH 1224 Auto

Stock Number

cmu/0462

Table size

300 x 600mm

Max. grinding length

Longitudinal 600mm

Max. grinding width

Crosswise 300mm

MACH L-1550

Centre height

190mm

Swing over bed

387mm Dia

Swing in gap

610mm

MACH L-1340

Centre height

171mm

Swing over bed

342mm Dia

Swing in gap

512mm

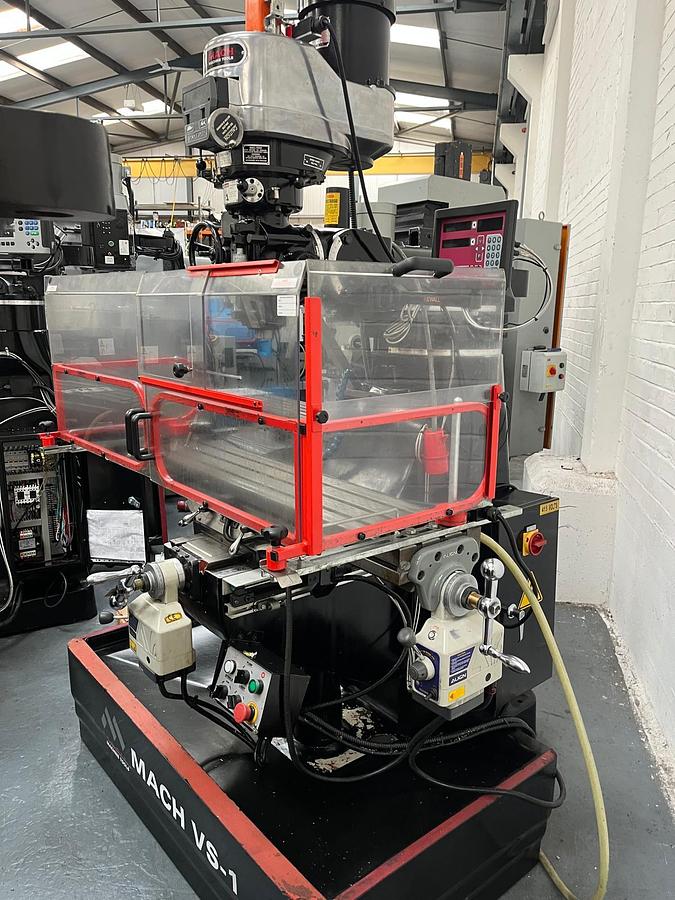

MACH VS-1

Table travel (x-axis)

800mm (with power feed)

Saddle travel (y-axis)

305mm

Quill travel

127mm
