MACH VS-1

MACH VS-1

orCall +44 (0) 117 965 2706

Description

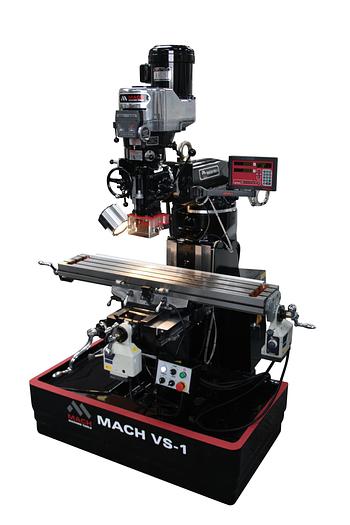

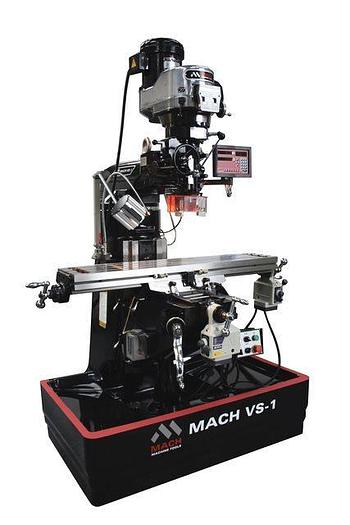

MACH MT provides manufacturers with the best-selling VS-1 turret-type milling machine.


Highlights:



  • Variable speed head for increased flexibility and capability.
  • Large capacity 48” x 9” (1219.2 x 228.6mm) work table.
  • Variable feed with rapid over-ride to the X-axis for improved performance, higher productivity and longer tool life.
  • Chrome slide-ways with hardened table top and tee slots for prolonged life.
  • Available with Newall DP 500 or Acu-Rite 200S programmable 2-axis DRO.
  • A Silvaflame Cleervue interlocked spindle mounted safety guard.
  • X- and Y-axis power feed.

Specifications

ModelTurret-type Milling Machine
ConditionNew
Table travel (x-axis)800mm (with power feed)
Saddle travel (y-axis)305mm
Quill travel127mm
Worktable (standard)1219 x 299mm
Centre distance64mm centres
T-slot size16mm
Height above floor (max.)1200mm
Weight of workpiece (max.)340kg
Boring range152mm Mild Steel
Spindle diameter48mm
Speed, high (infinitely variable)500 - 4200rpm
Speed, low (infinitely variable)60 - 500rpm
Floor space2.5 x 1.6m
Machine height2.15m
Machine weight885kg
