2017 XYZ SLV 3000

2017 XYZ SLV 3000

Available quantity:1

Description

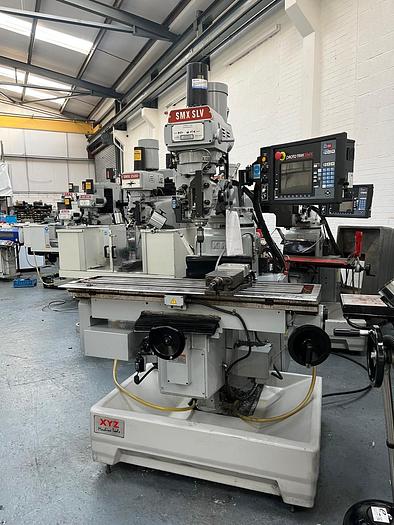

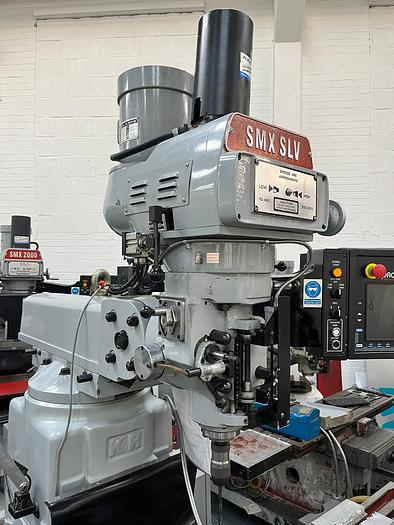

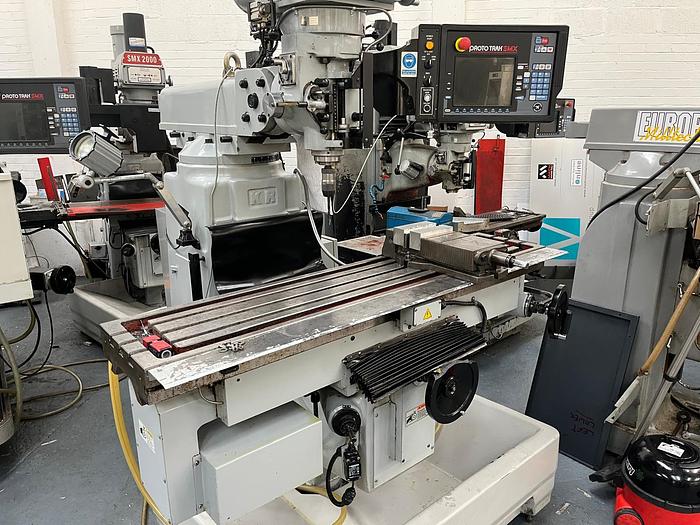

This used XYZ SMX 3000 SLV is in very nice well-maintained condition and

has 1m X Axis travel, 2 Axis SMX Controller and Air power drawbar.


Specification:

Vary Speed 2 Range Head

Box Ways

3 Axis DRO, 2 Axis SMX Control

Power Rise & Fall to Knee

Auto Lubrication, Swarf Tray, Interlocked Guarding

Spindle Drive Motor 3.75 kw (5 HP)

Vari Speed Range High/Low 70-3600 rpm

Table size 1473 x 305 mm, T slots-3 15.9 mm 3 off

Longitudinal travel – X Axis 1000 mm

Cross travel – Y Axis 410 mm

Knee vertical travel – Z Axis 400 mm

Slide type Hardened Box Way

Ram travel 450 mm, Spindle taper 40 ISO

Quill power feeds .038 .076 .15 mm, Quill travel 127 mm

(110 mm if SMX3) Quill diameter 105 mm

Max throat depth 700 mm

Net weight approx 1850 kg

Specifications

ManufacturerXYZ
ModelSLV 3000
Year2017
ConditionUsed
Serial Number12628
Stock Numbercmu/0498
ControlPrototrak SMX
SpecTravel X1000 Y410 Z400 mm | 4000RPM | ISO40
AccessoriesPower rise and fall knee, Box way construction, Splash tray
