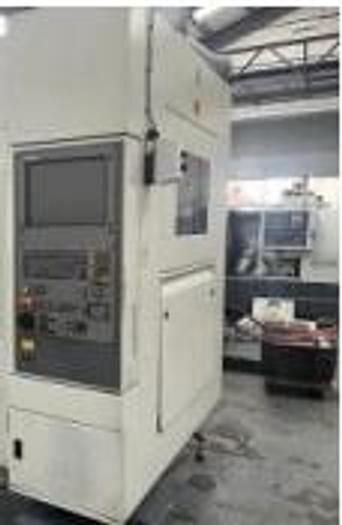

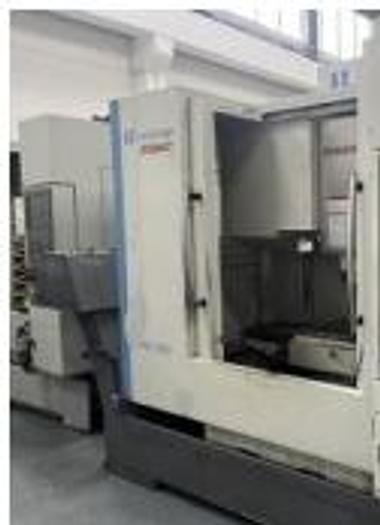

2005 Hardinge Bridgeport 1000 XP3 VMC

2005 Hardinge Bridgeport 1000 XP3 VMC

Description

A 2005 Built Hardinge Bridgeport 1000 XP3 with Heidenhain i530 control,12,000 RPM spindle with through coolant, 30 tool rapid ATC & swarf conveyor and mist extractor.


SPECIFICATION:

X Axis 1020mm, Y Axis 610 mm, Z Axis 610 mm, Table Surface to Spindle

Gauge Plane Distance 100 to 710 mm, Auto Mode (X and Y Axis) 43 m/mm

Auto Mode (Z Axis) 36 m/mm

Feedrate Range (X and Y Axis) .0025 - 20 m/mm Feedrate Range (Z Axis)

.0025 - 20 m/mm, Ball Screw Dia. and Pitch (X and Y Axis) 45 x 16 mm, Z Axis

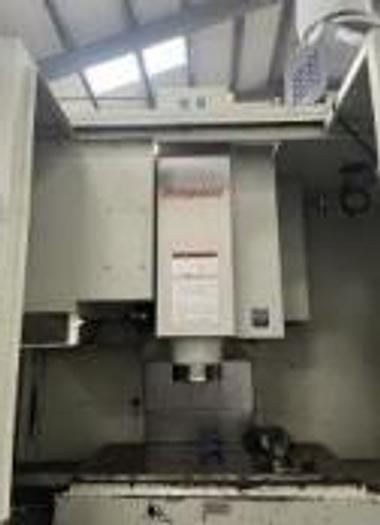

45 x 12 mm, Spindle 12,000 rpm Heidenhain—Motor HP Rating (S6 40%) 25

kW, Torque (S6 40%) 159.2Nm, Spindle Taper BT 40, Spindle Speed

12,000RPM, Motor HP Rating (S6 40%) 25 kW, Working Surface 1200 x 600

mm, Table Load 900 kg, Number of T-Slots 5, T-Slot Size 18 mm, T-Slot

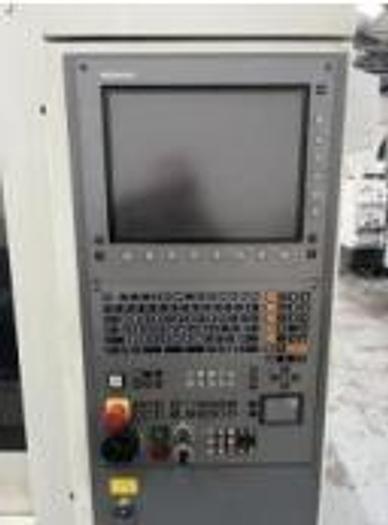

Center Dimension 100 mm, Heidenhain i530, Magazine Capacity 30 Tools

Max. Tool Diameter 125 mm (adjecent pocket) 80 mm, Max. Tool Length 300

mm, Max. Tool Weight 7 kg, Coolant and Chip Mangement

Swarf Removal Chip Conveyor, Coolant Tank Capacity 355L, Wash Down

Standard, Wash Gun Standard, Cutter Air Blaster Standard, Through Spindle

Coolant, Accuracy - ISO 230-2

Positioning - A 0.010 mm, Repeatability - R 0.004 mm, Linear Scale Option,

Positioning 0.006 mm

Repeatability 0.0003 mm, Machine

Size, Machine Dimensions (WxD)

2528 x

3000 mm

Height 2921 mm, Mass of Machine

6700 kg (30T) Installation

Specifications

Electrical Supply (Input)—Balanced

3-Phase 50 or 60 Hz, Power 25

KVA,

Voltage2 208 - 230 or 380 - 440 Volt, Compressed Air (Pressure / Flow) 4.9

cfm, Coolant Flow Rate at Cutter 160 L/min

Through Spindle Coolant Pressure 20 bar (Std) Washdown 140 L/min

Specifications

ManufacturerHardinge
ModelBridgeport 1000 XP3
Year2005
ConditionUsed
Serial Number320B105
Stock Numbercmu/0447
