2014 Miyano BNA-42S2

Specification:

Capacity

Max. Machining Length mm 100

Max. Machining Dia. of Bar Work SP1/SP2 mm 42

Spindle Bore mm 43

Spindle speed SP1/SP2 rpm 6000

Spindle motor power SP1/SP2 (cont./15min) kW 7.5-5.5

Power chuck type SP1 type 5" thru-hole chuck

Slides

X1 Axis mm 135

Z1 Axis mm 235

B Axis mm 310

Rapid traverse rate X1/Z1/B-axes m/min 20-20-20

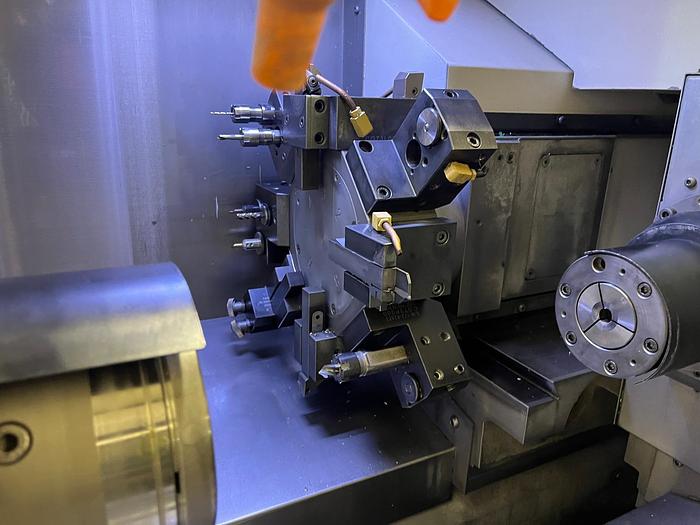

Turret

No. of stations 8

Tool Size ( Cross Sectional ) mm 20x20

Diameter of drill shank mm 25

Indexing time sec 0.2

Tool spindle speed range rpm 5000

Revolving tool drive kW 2.8/1.0 kw

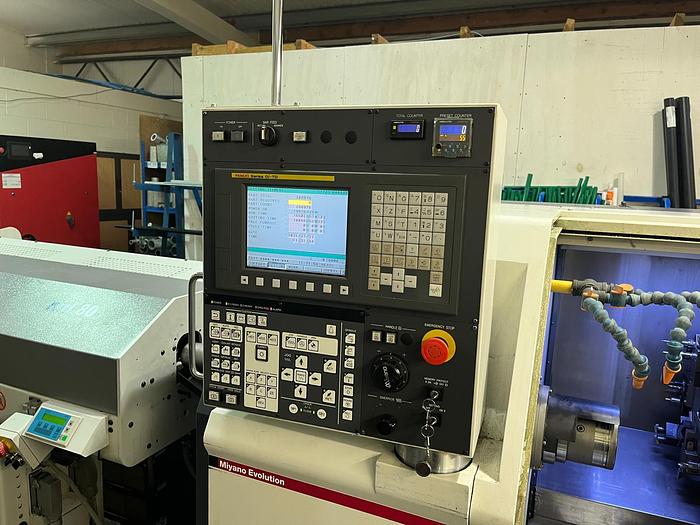

CNC system Controller – Fanuc Oi-TD

Machine size

Machine Dimensions (LxHxW) mm 2150x1290x1660

Machine weight (Approx) kg 2800
