2020 Hurco TM8i

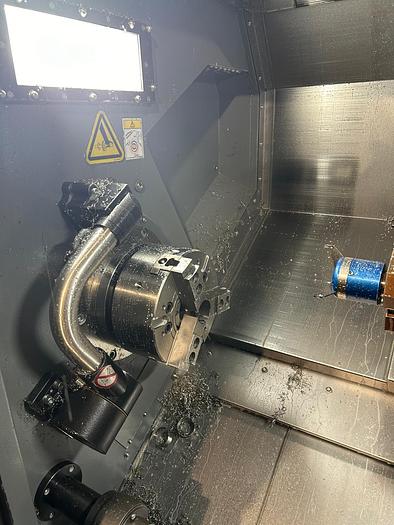

Used 2020 Hurco TM8i CNC Lathe in great condition with low spindle hours and full service history. Equipped with Hurco WinMax Control for easy programming and high-speed machining. The machine can be seen under power in our showroom.

Compact, high-performance lathe designed to meet your production requirements.

• Hurco WinMax Control – Advanced, user-friendly CNC control system designed for maximum productivity and ease of use
• High-Performance Spindle – Delivers smooth, stable operation for exceptional turning precision
• Rigid Construction – Designed for reliable performance and accuracy over the long term

Machine Specification:

CAPACITY

• Distance Between Centers: 23.49 in (597 mm)
• Swing Over Bed Diameter: 20.67 in (525 mm)
• Swing Over Cross Slide Diameter: 11.8 in (300 mm)
• Max Turning Diameter: 14 in (356 mm)
• Max Turning Length: 20.67 in (525 mm)
• Max Bar Capacity: 2.5 in (64 mm)
• X, Z Axis Travel: 8 x 21.65 in (203 x 550 mm)

SPINDLE

• Max Spindle Speed: 4,000 rpm
• Max Torque (High Gear): 133.83 ft-lb @ 1,000 rpm (100.7 Nm @ 1,000 rpm)
• Spindle Power: 25.48 hp (19 kW)
• Spindle Nose: A2-6
• Chuck Diameter: 8.2 in (210 mm)

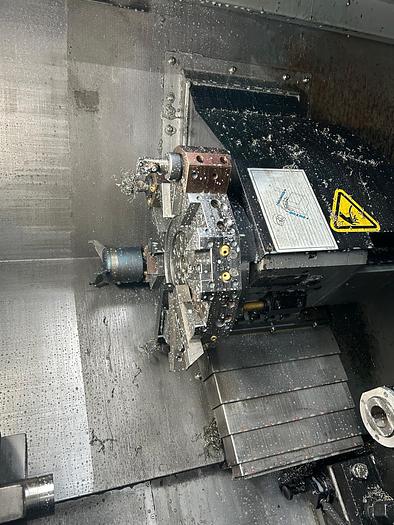

TURRET

• Tool Type: Slotted Disc
• Tool Capacity: 12 Stations
• Turret Index Time (Adjacent): 1.3 seconds
• Turret Index Time (Furthest): 3.6 seconds

FEEDRATES

• Rapid Traverse (X, Z Axis): 1,181 in/min (30 m/min)

SIZE

• Max Operating Floor Space: 170.7 x 122.6 in (4,336 x 3,114 mm)
• Machine Height: 86.32 in (2,193 mm)
• Machine Weight: 8,885 lbs (4,030 kg)
• Parts Catcher Dimensions: 5.9 x 3.7 x 2.8 in (150 x 95 x 70 mm)

This Hurco TM8i CNC Lathe is perfect for businesses seeking a compact yet powerful machine for precision turning tasks. Its advanced control system and rigid construction ensure high-quality results and increased productivity, making it ideal for both small and medium production runs.

For more details or to schedule a viewing, please contact us.
