2020 Hurco TM10i

Used 2020 Hurco TM10i CNC Lathe in great condition with low spindle hours and a full service history. Fitted with Hurco WinMax Control for fast, efficient programming and seamless machining operations. The machine can be seen under power in our showroom.

Compact, high-performance lathe designed to meet your production requirements.

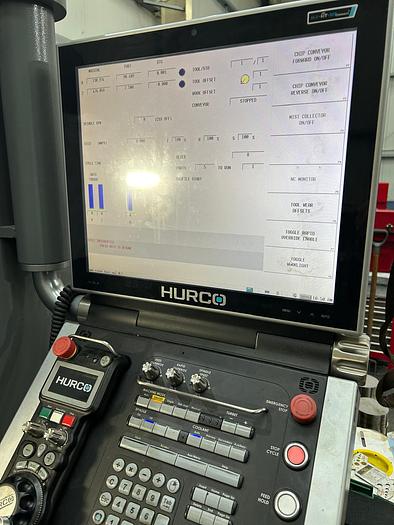

• Hurco WinMax Control – Advanced, user-friendly CNC system designed for ease of operation and enhanced productivity

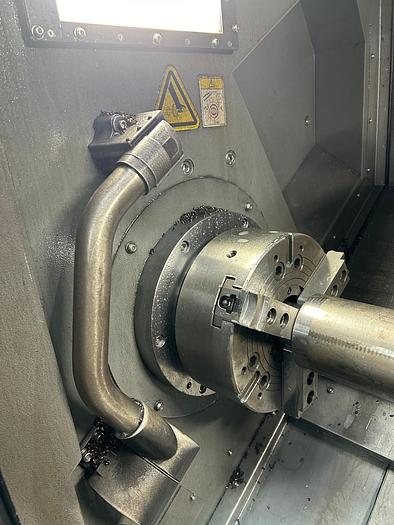

• High-Performance Spindle – Direct drive spindle offers excellent torque and smooth operation for superior surface finishes
• Rigid, Heavy-Duty Construction – Ensures exceptional accuracy and long-lasting performance

Machine Specification:

CAPACITY

• Distance Between Centers: 29.29 in (744 mm)
• Swing Over Bed Diameter: 22.9 in (582 mm)
• Swing Over Cross Slide Diameter: 15.8 in (402 mm)
• Max Turning Diameter: 17.7 in (450 mm)
• Max Turning Length: 29.84 in (758 mm)
• Max Bar Capacity: 3.0 in (76 mm)
• X, Z Axis Travel: 9.8 x 31.1 in (250 x 790 mm)

SPINDLE

• Max Spindle Speed: 3,000 rpm
• Max Torque (High Gear): 217.61 ft/lb @ 600 rpm (295.9 Nm @ 600 rpm)
• Spindle Power: 24.81 hp (18.5 kW)
• Spindle Nose: A2-8
• Chuck Diameter: 10 in (260 mm)

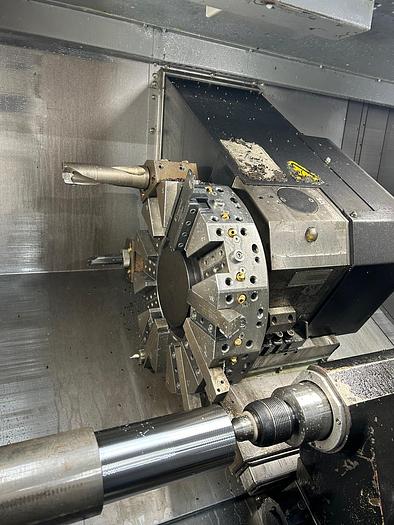

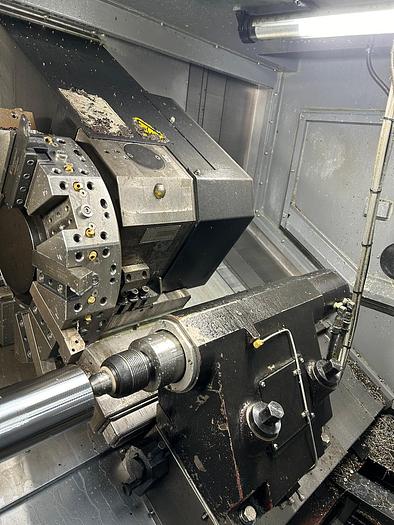

TURRET

• Tool Type: Slotted Disc
• Tool Capacity: 12 Stations
• Turret Index Time (Adjacent): 1.3 seconds
• Turret Index Time (Furthest): 3.6 seconds

FEEDRATES

• Rapid Traverse (X, Z Axis): 1,181 in/min (30 m/min)

SIZE

• Max Operating Floor Space: 192.15 x 112.36 in (4,881 x 2,854 mm)
• Machine Height: 87.89 in (2,233 mm)
• Machine Weight: 11,054 lbs (5,014 kg)
• Parts Catcher Dimensions: 8.3 x 5.0 x 3.5 in (210 x 127 x 88 mm)

This Hurco TM10i CNC Lathe is a versatile and powerful machine, ideal for high-precision turning tasks. Its robust design, quick cycle times, and advanced control system make it perfect for both small and large production runs.

For more information or to schedule a viewing, please contact us.
