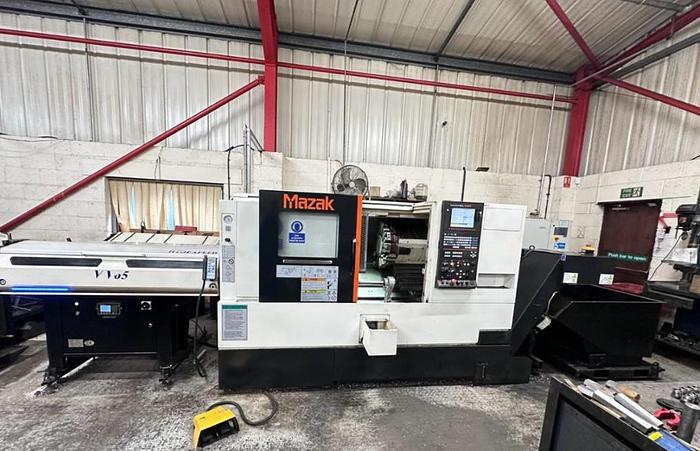

2011 Mazak Quick Turn Smart 200 M

2011 Mazak QuickTurn Smart 200 M with Mazatrol Smart Control, driven tools, parts catcher, swarf conveyor, Hydrofeed MV 65 barfeed, 3-jaw chuck, tailstock, and probe.

Machine Specification:

CONTROL

Mazatrol Smart Control

CAPACITY

Chuck size: 6” (Hydraulic 3-jaw chuck)

Maximum turning diameter: 350 mm

Maximum turning length: 500 mm

Swing over the saddle: 550 mm

Max bar work capacity: 65 mm (Barfeed)

MAIN SPINDLE

Spindle speed: 5,000 RPM

Spindle nose: A2-5

Motor output: 15 kW

Maximum torque: 130 Nm

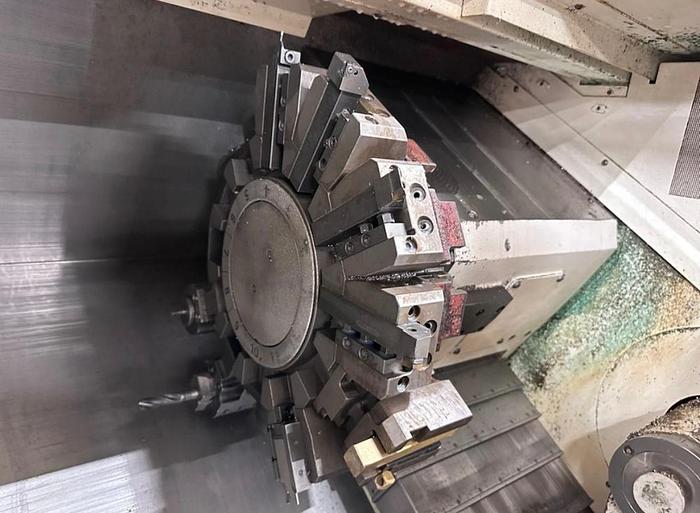

TURRET

Number of positions: 12

Driven tools: 3 positions

Rotary tool spindle motor power: 5.5 kW

Maximum rotary tool speed: 5,000 RPM

FEED AXES

Travel (X axis): 250 mm

Travel (Z axis): 500 mm

Rapid traverse (X axis): 30 m/min

Rapid traverse (Z axis): 30 m/min

ACCESSORIES

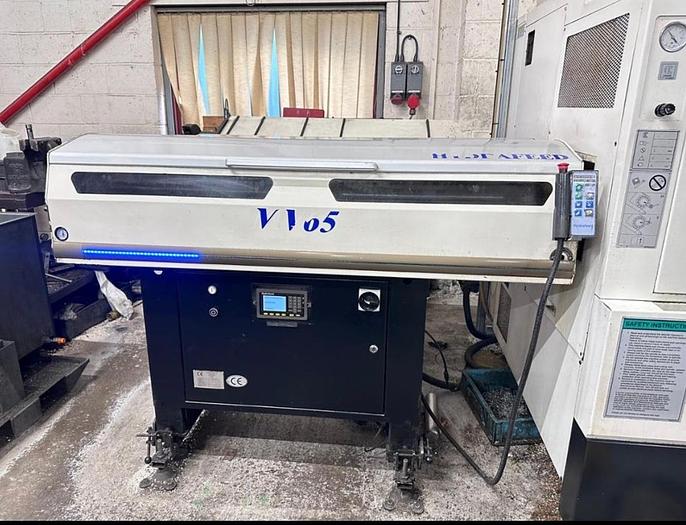

Hydrofeed MV 65 Barfeed

Parts catcher

Swarf conveyor

Probe

MACHINE SIZE

Machine dimensions (L x W x H): 2,500 mm x 1,600 mm x 1,750 mm

Machine weight: 5,500 kg

Total power consumption: 20 kVA
