2017 YCM NMV76A

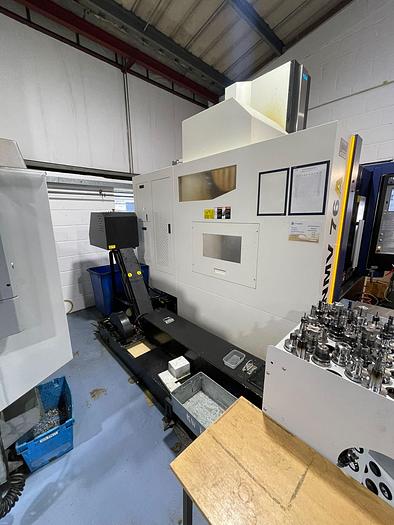

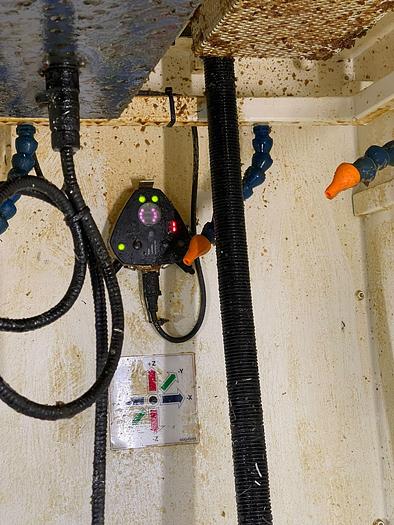

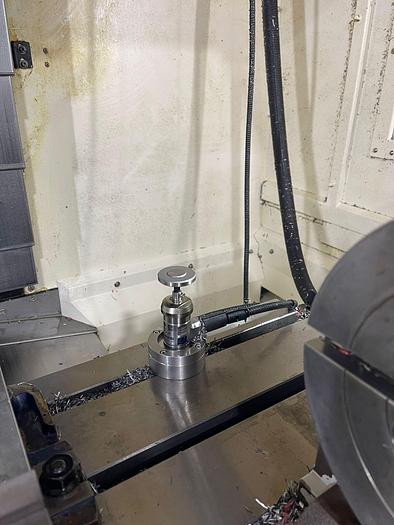

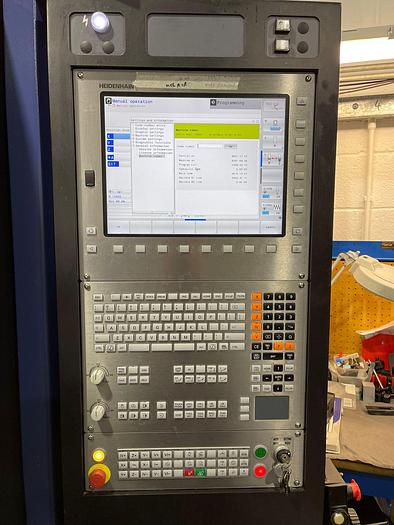

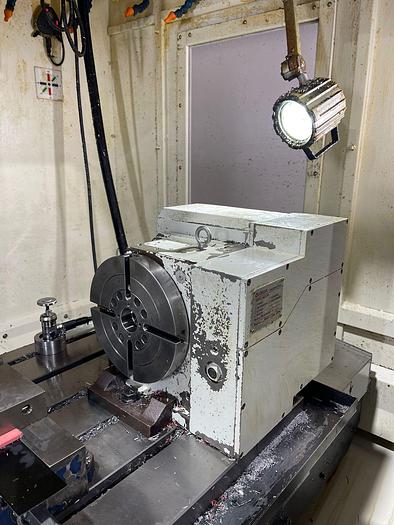

Used YCM NMV 76A Box guideway VMC with Detron 4th axis, Through spindle coolant, Heidenhain Spindle and table probe and Swarf conveyor. Photo'd onsite arriving in the Bristol showroom soon.

Specification:

Spindle Speed 12,000 RPM

Spindle Power 18.5 kW

Spindle Taper BBT40

X-axis Travel 762 mm

Y-axis Travel 510 mm

Z-axis Travel 560 mm

Distance Between Spindle Nose & Table Top 120~680 mm

Table Size 915 x 560 mm

No. T-slot x Size x Pitch 5 x 18 x 100 mm

Max. Load on Table 500 kg

X/Y/Z Rapid Feedrate 36/36/24 m/min.

Cutting Feedrate 1~20,000 mm/min.

Tool Magazine Capacity 24 T

Tool Weight 6 kg/pc

Max. Tool Dimension (W/O Adjacent Tools) ø90 x 300 mm

Machine Weight 5,100 kg

Options : 4th Axis, Through spindle coolant, Swarf conveyor, Spindle and Table Probe.
