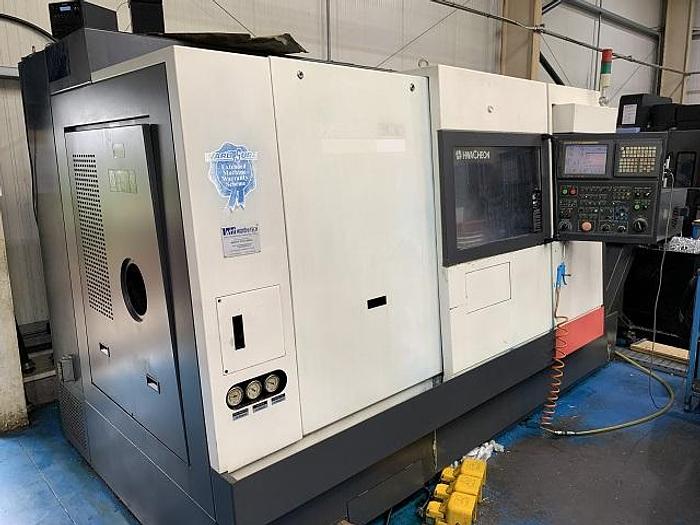

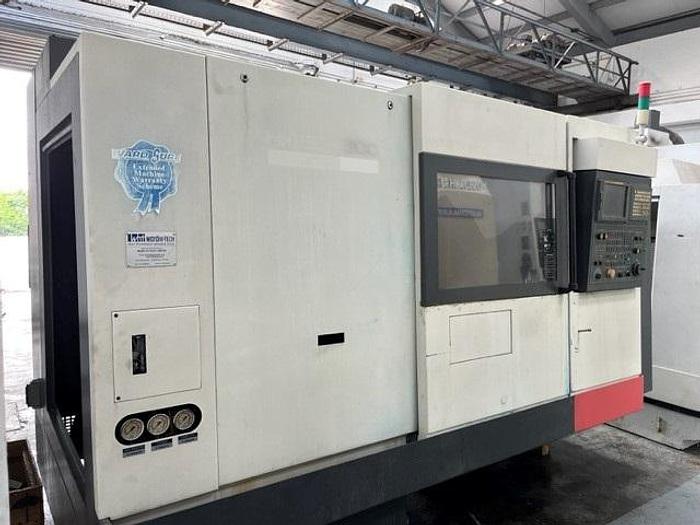

2007 HWACHEON HI-TECH 300 MC

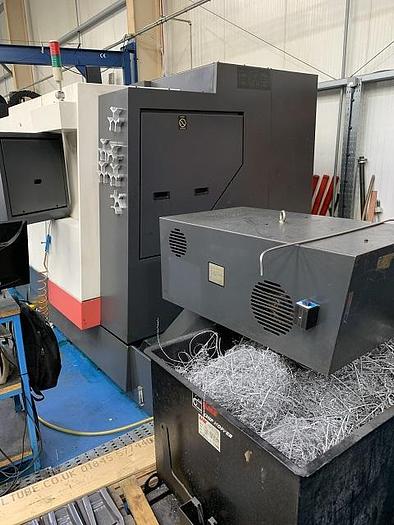

Used 2007 Hwacheon CNC Lathe with Milling, C Axis, Swarf conveyor, tool setter, tailstock and Fanuc control.

Specification:

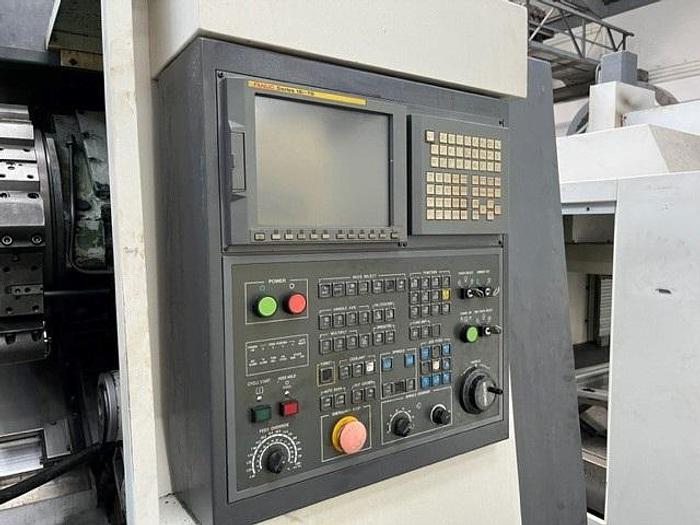

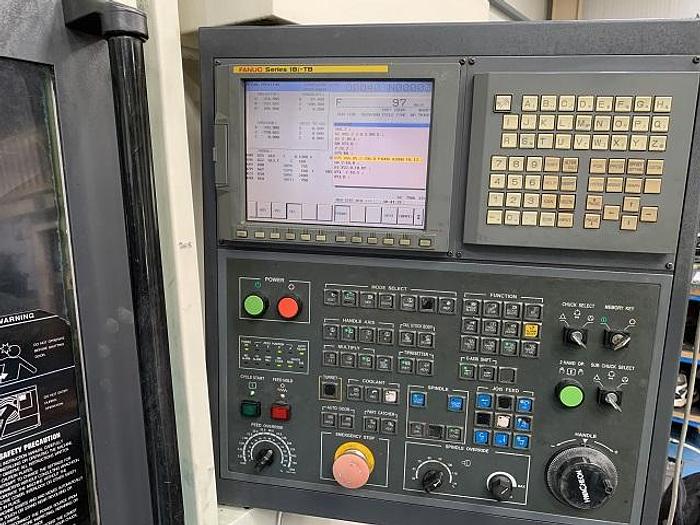

Control FANUC 18i-TB

Swing over the Cross-slide 340mm

Bar Capacity 76mm

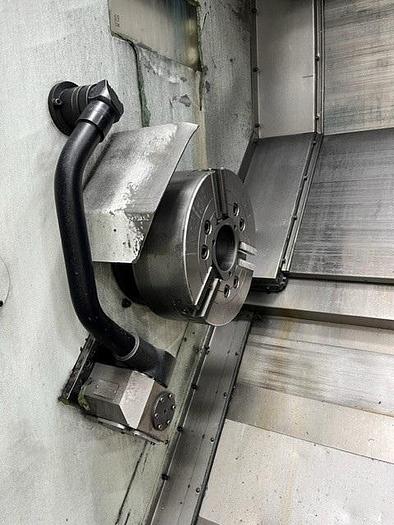

Chuck Size 315mm (12")

Maximum Cutting diameter 380mm

Maximum Cutting Length 800mm

Milling Motor Power 7.5/5.5kW

Milling RPM 4000rpm

Swing 600mm

Tailstock Quill Stroke 120mm

Tailstock Taper MT #5

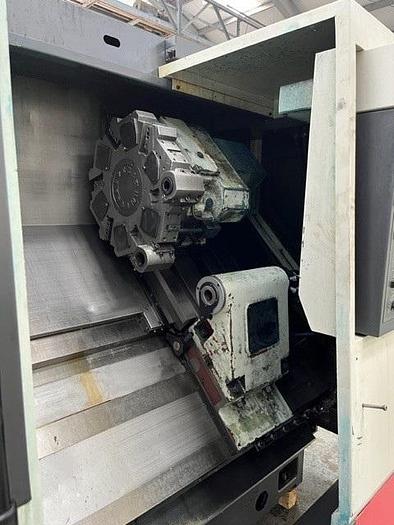

Turret Positions 12 Station

Rapid Feed rates 20m/minute

Spindle Motor Power 22/18.5kW with Gearbox

Spindle Nose A2-8

Spindle Speed 3200rpm

Machine Dimensions 3300 x 1960 x 2150mm

Machine Weight 8500kg
