2019 Haas Mini Mill

Used 2019 Haas Mini Mill in as new condition and hardly used...Supplied with 6000 RPM Spindle, 10 station ATC, coolant equipment & manual set.

SPECIFICATION:

TRAVELS:

X Axis 16 " 406 mm, Y Axis 12 " 305 mm, Z Axis 10 " 254 mm

Spindle Nose to Table (~ max) 14 " 356 mm, Spindle Nose to Table (~ min)4 " 102 mm

TABLE:

Length 36 " 914 mm, Length (Work Area) 28.75 " 730 mm, Width 12 " 305 mm

T-Slot Width 5/8 " 16 mm, T-Slot Centre Distance 4.33 " 110.0 mm, Number of

Std T-Slots 3 Max Weight on Table (evenly distributed) 500 lb 227 kg

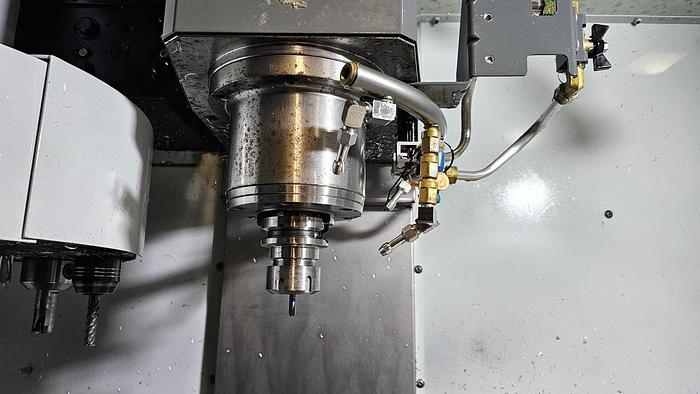

SPINDLE:

Max Rating 15 hp 11.2 kW, Max Speed 10,000 rpm, Max Torque

17 ft-lb @ 4600 rpm 23 Nm @ 4600 rpm, Drive System Direct Speed Belt Drive, Taper

BT 40, Bearing Lubrication Air/Oil Injection Cooling Air Cooled

FEEDRATES:

Rapids on X 1200 in/min 30.5 m/min, Rapids on Y 1200 in/min

30.5 m/min, Rapids on Z 1200 in/min 30.5 m/min, Max Cutting 833 in/min 21.2 m/min

AXIS MOTORS:

Max Thrust X 2000 lb 8896 N,

Max Thrust Y 2000 lb 8896 N

Max Thrust Z 2000 lb 8896 N

TOOL CHANGER:

Type Carousel, Capacity 10, Max Tool Diameter (full) 3.5 "

89 mm, Max Tool Weight 12 lb 5.4 kg, Tool-to-Tool (avg) 2.8 sec, Chip-to-Chip (avg) 3.8 sec

GENERALS:

Air Required 4 scfm, 100 psi 113 L/min, 6.9 bar, Coolant

Capacity 40 gal 151 L
