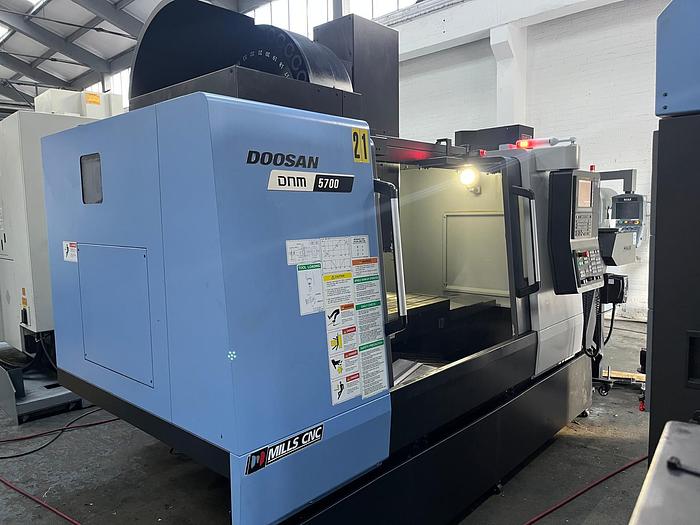

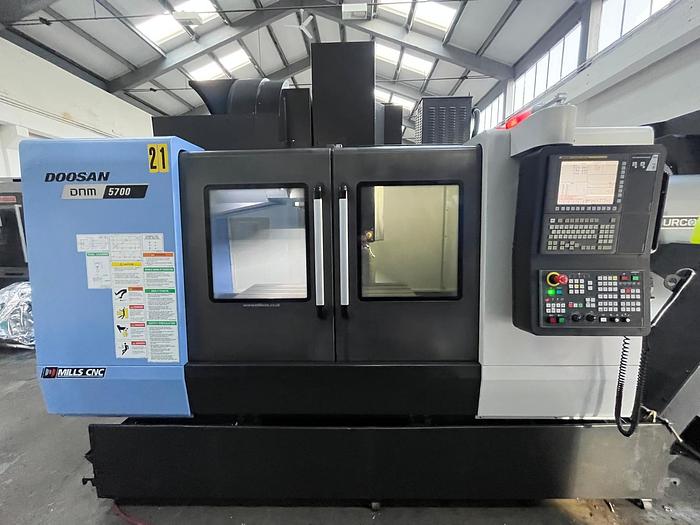

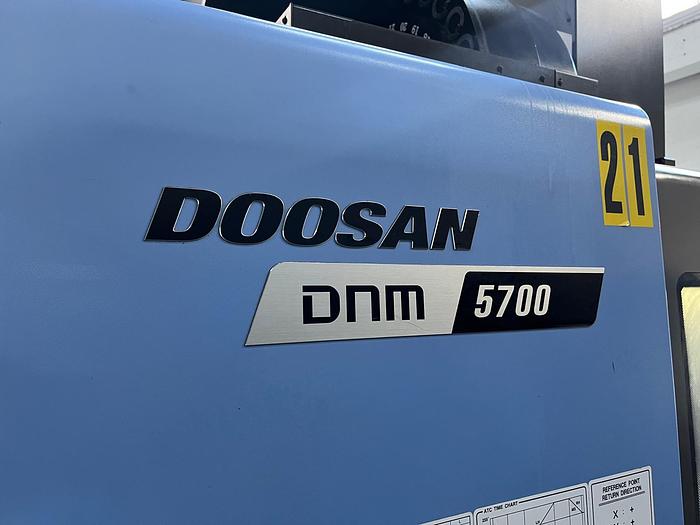

2016 Doosan DNM 5700

2016 Doosan DNM 5700

orCall +44 (0) 117 965 2706

Description

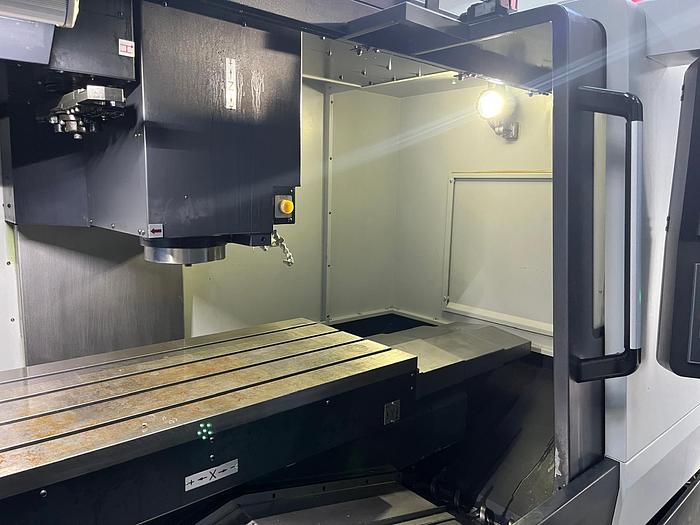

Used 2016 built Doosan DNM 5700 heavy duty VMC with Fanuc wide screen control, 12,000 RPM direct drive, face & taper BT 40 spindle with

through coolant.


Technical Specification

X Axis Travel distance 1050 mm

Y Axis Travel distance 570 mm

Z Axis Travel distance 510 mm

X Axis Rapid Traverse 36 m/min

Y Axis Rapid Traverse 36 m/min

Z Axis Rapid Traverse 30 m/min

Max. Spindle Speed 12000 r/min

Max. Spindle Power 18.5 kW

Max. Spindle Torque 117.8 N·m

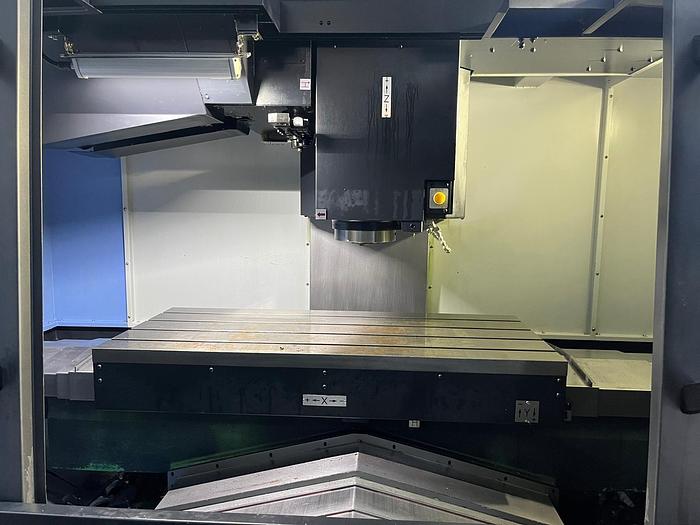

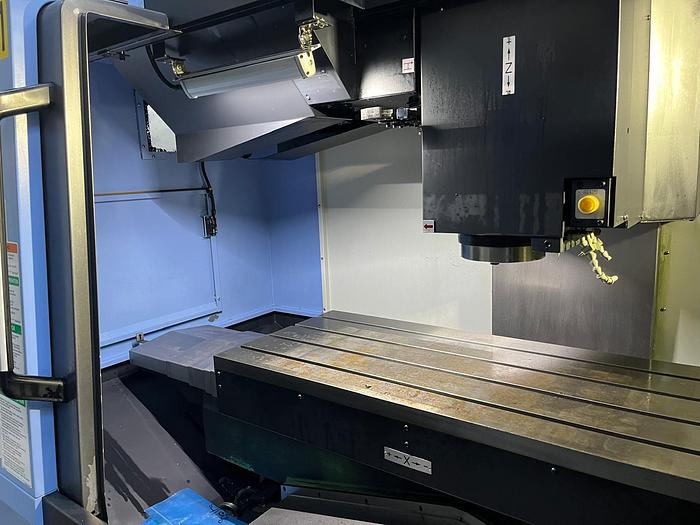

Table Length 1300 mm

Table Width 570 mm

Max. Table Weight 1000 kg


Product Dimensions

Length 2413mm

Width 3100mm

Height 2985mm

Weight 6500kg

Specifications

ManufacturerDoosan
ModelDNM 5700
Year2016
ConditionUsed
Serial NumberMV0091-000061
Stock Numbercmj/0207

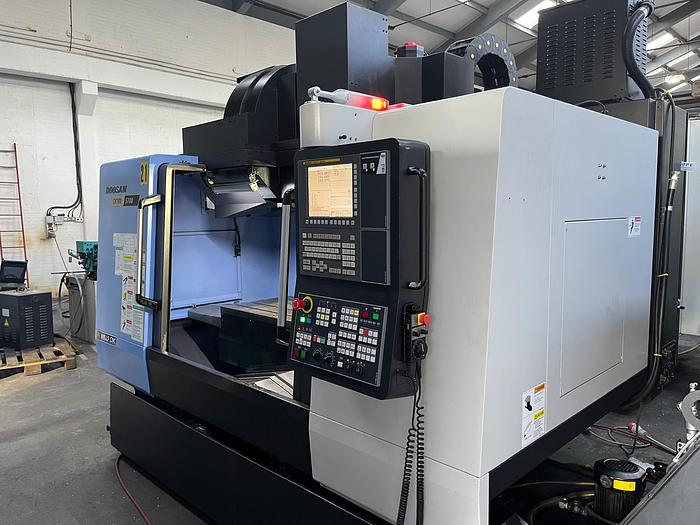

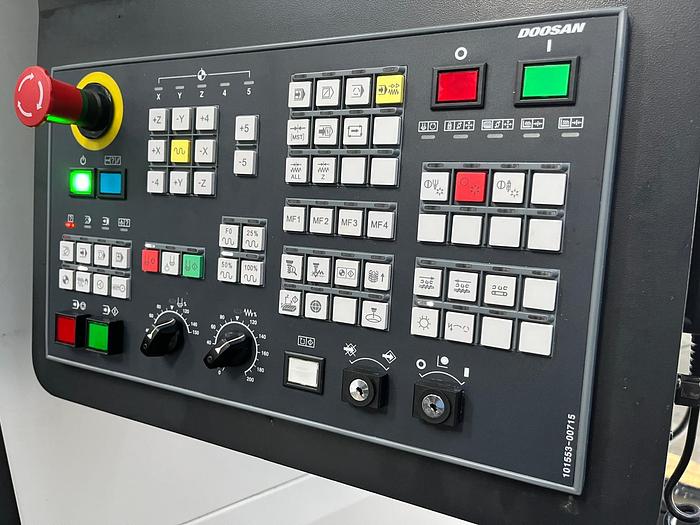

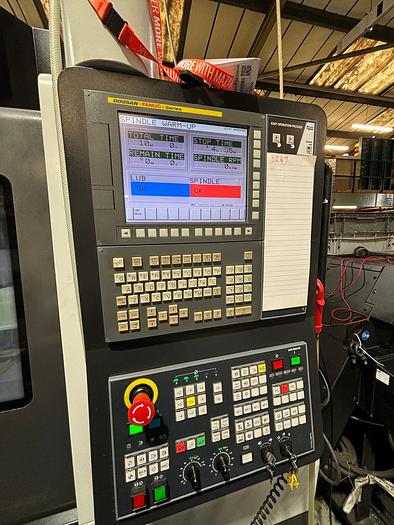

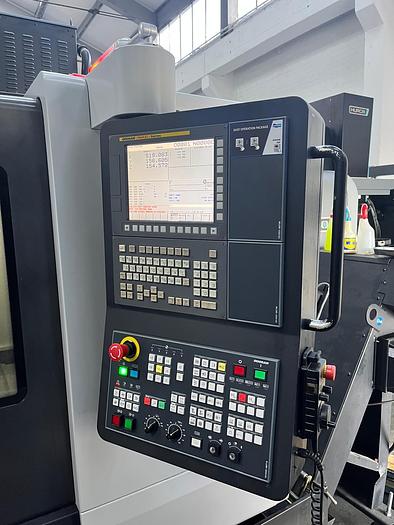

ControlFanuc
SpecsTravel X1050 Y570 Z510 mm | 12000RPM | BT40

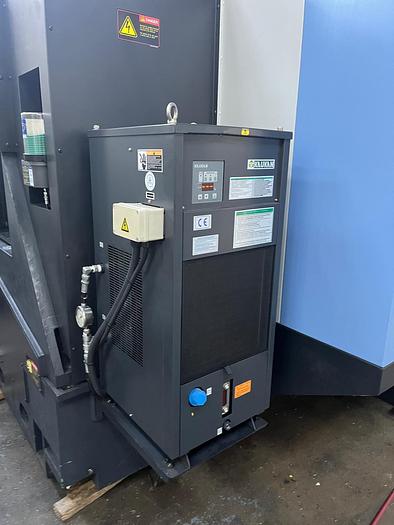

AccessoriesThrough Spindle Coolant, Spindle Chiller, Swarf conveyor
