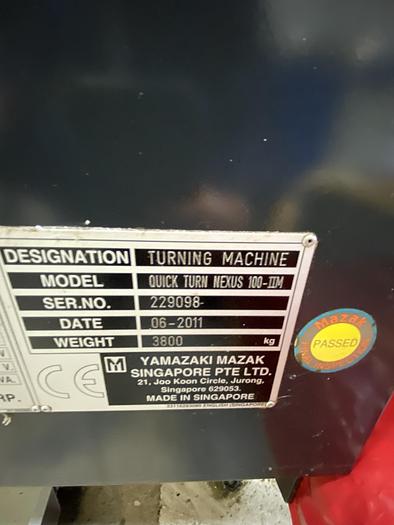

2011 Mazak Quick Turn Nexus 100 II M

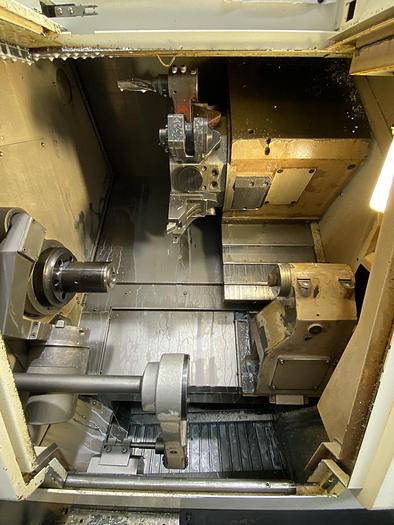

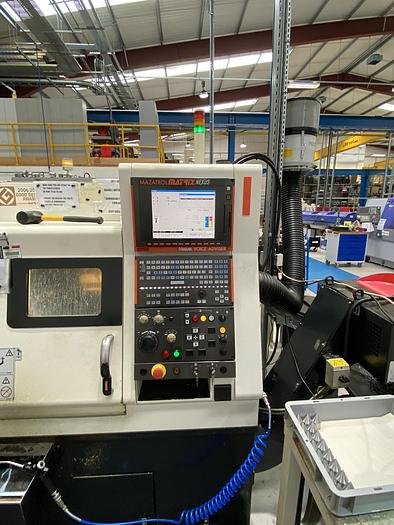

Used 2011 Mazak Quick Turn Nexus 100-II M 3 Axis CNC Lathe with Mazatrol Matrix Nexus control, parts catcher, swarf conveyor, 3 jaw power chuck, Collet chuck Tool setter, Barfeed, programmable tailstock and Tooling package.

Specification:

Working capacity

Max. swing diameter 550 mm

Max. machining diameter 280 mm

Max. machining length 334 mm

Max. bar material diameter 51 mm

Main-spindle

Spindle speed 35-6.000 RPM

Main spindle motor 11 kW

Max. torque 184 Nm

Spindle nose A2 – 5 ''

Spindle indexing increments 0,001 °

Turret

12 Position

Driven tools

Rotary tool spindle speed 25-4.500 RPM

Power 5,5 kW

Max. torque 35 Nm

Travel

X-axis stroke 185 mm

Z-axis stroke 385 mm

Feedrate

Rapid traverse rate:

X-axis 30 m/min

Z-axis 33 m/min

C-axis 400 RPM

Tailstock

Tailstock center MK 4

Tailstock travel 350 mm

Machine Detail

Machine weight 3.800 kg

Machine size (L x W x H), approx.2,10 x 1,70 x 2,00 m

Accessories

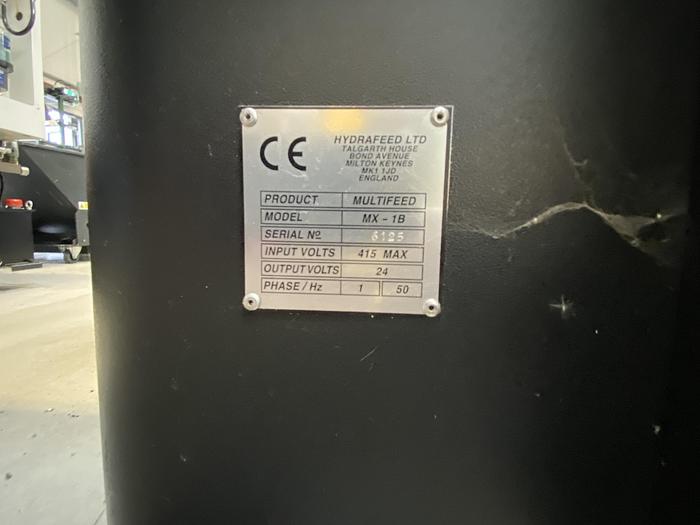

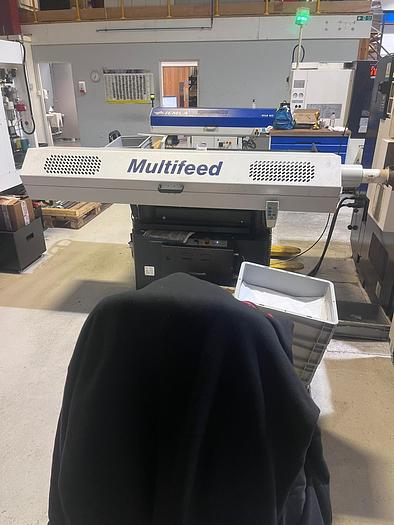

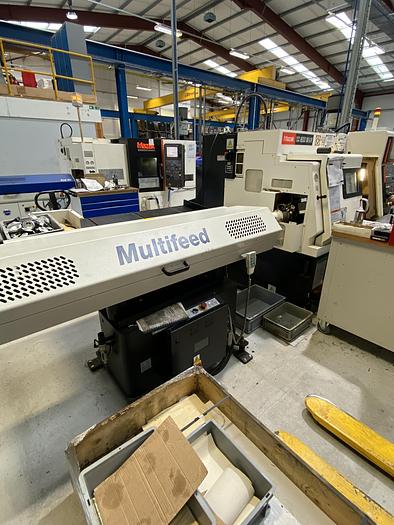

Multifeed MX1B Barfeed

Tool Measure (MAZAK Tool Eye System)

C-Axis

Double foot switch for opening / closing of the chuck

Confirmation of the feed-state (open/сlosed)

NC-programmable tailstock

Front door lock

Complete coolant system

Work light

User Macro (600 variables)

MAZAK Tornado EIA/ISO

EIA/ISO Input function

Optional stop

Tapping function

Polar coordinate entry (G122)

Direct data input function drawing

USB Interface (x 2)

LAN Interface

MAZAK Language Support

Virtual machining

Manuals
