Colchester Triumph VS2500

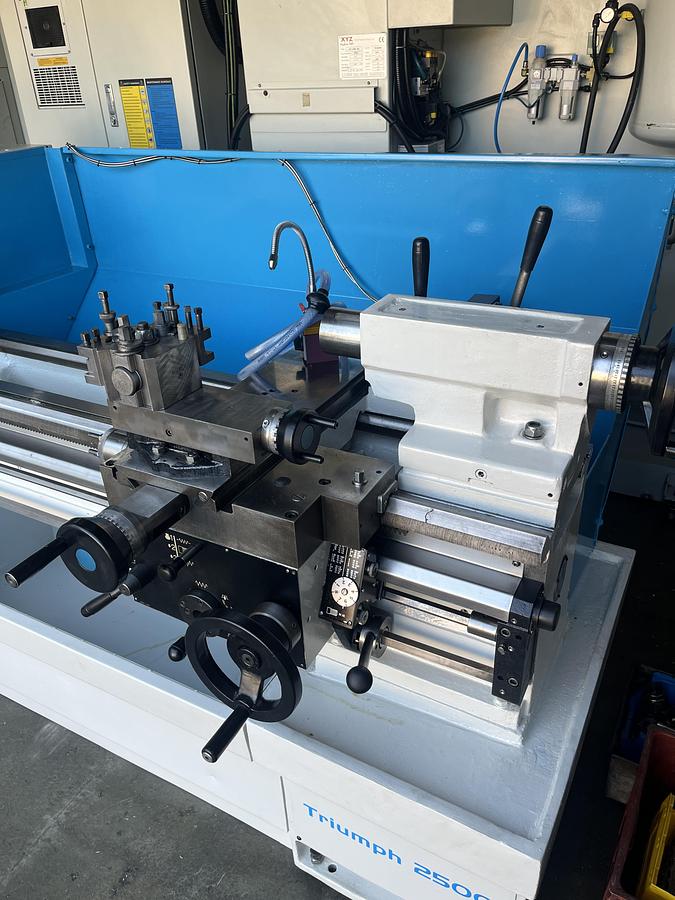

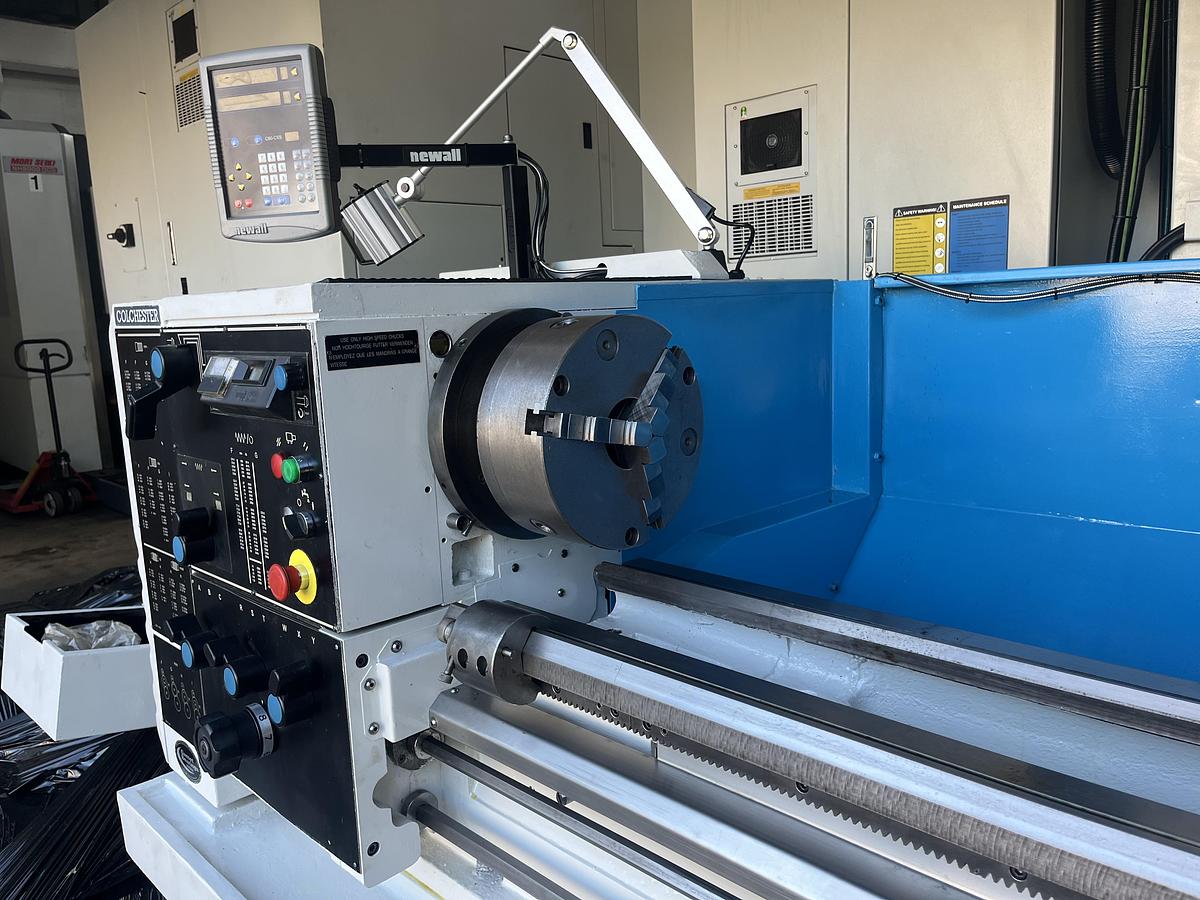

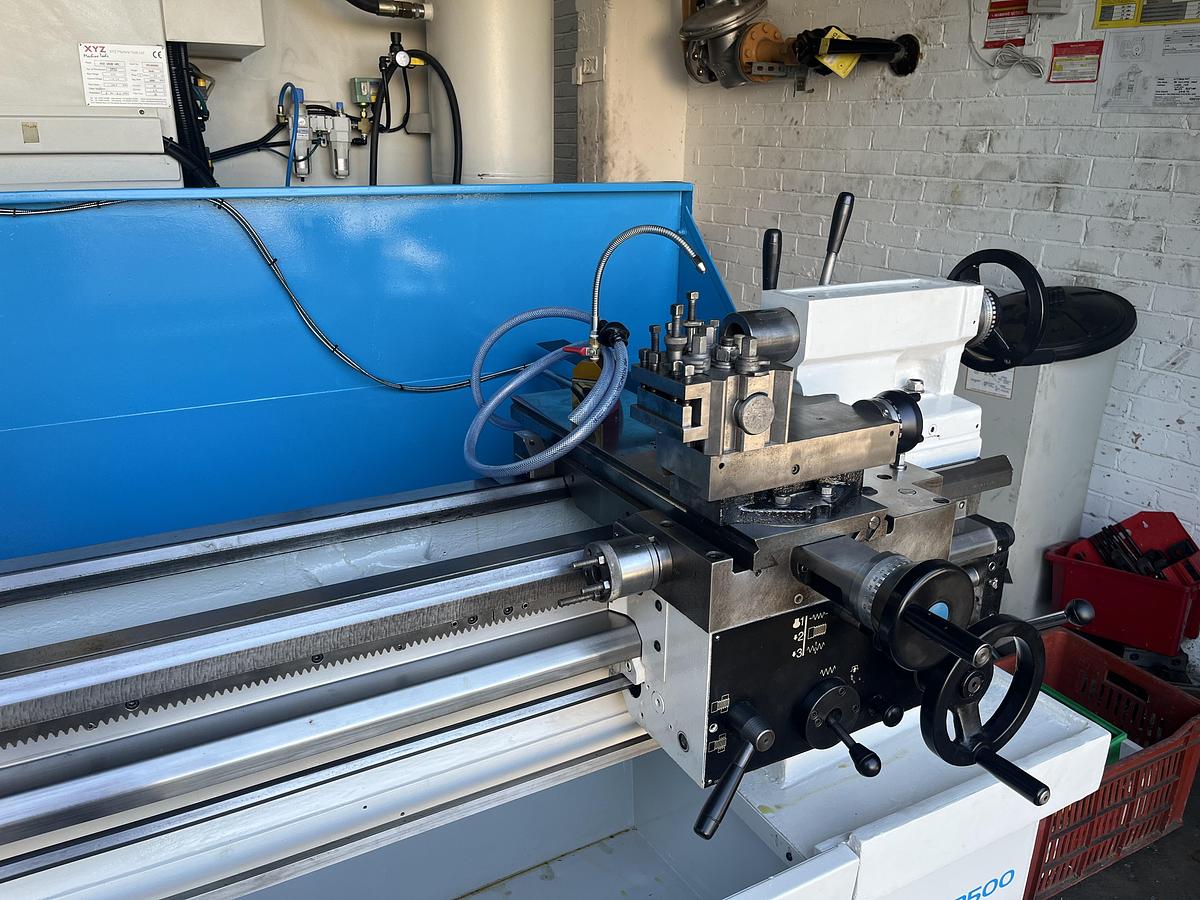

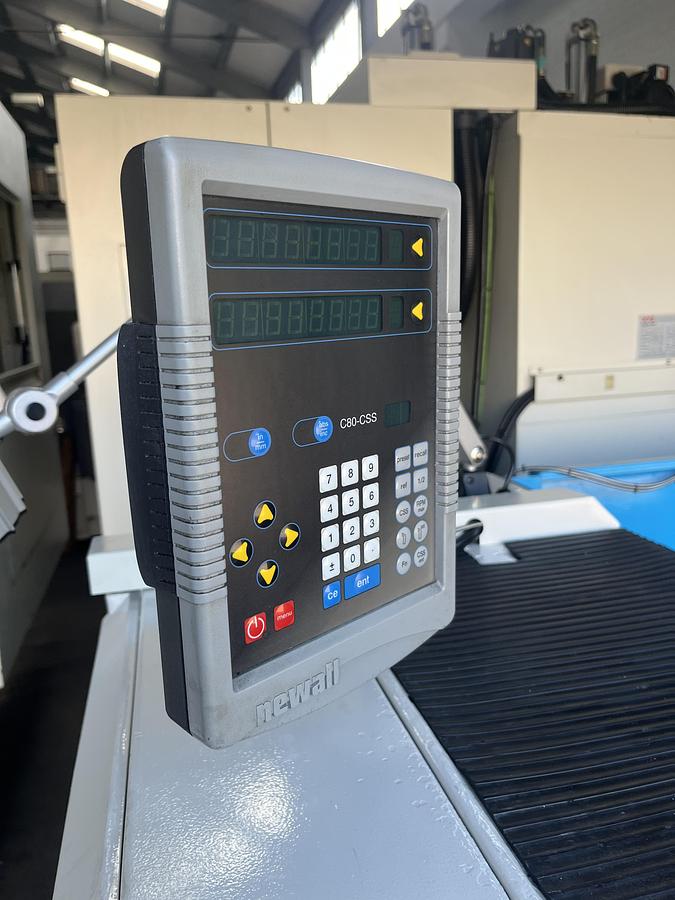

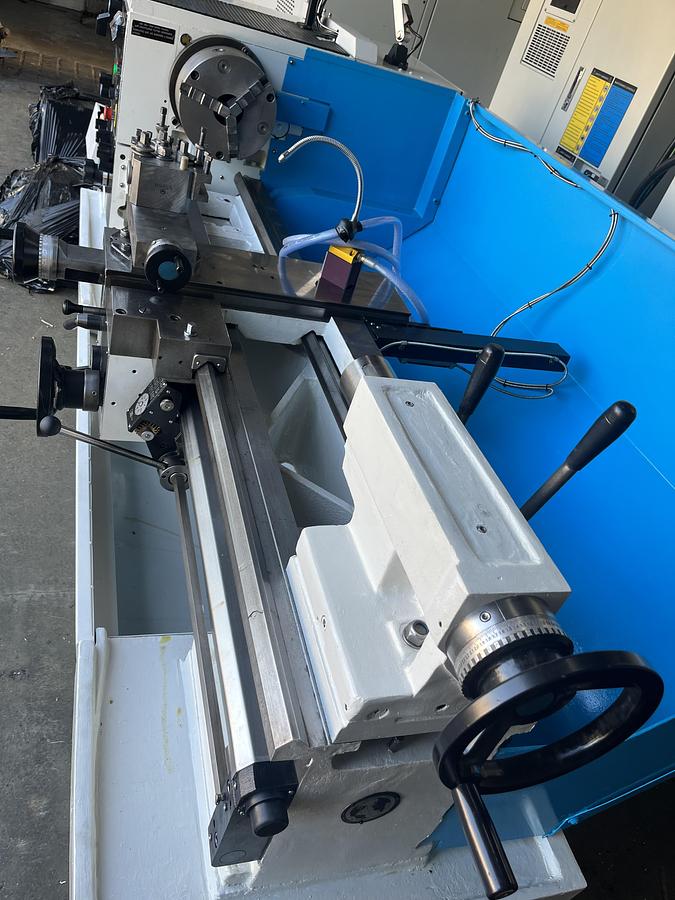

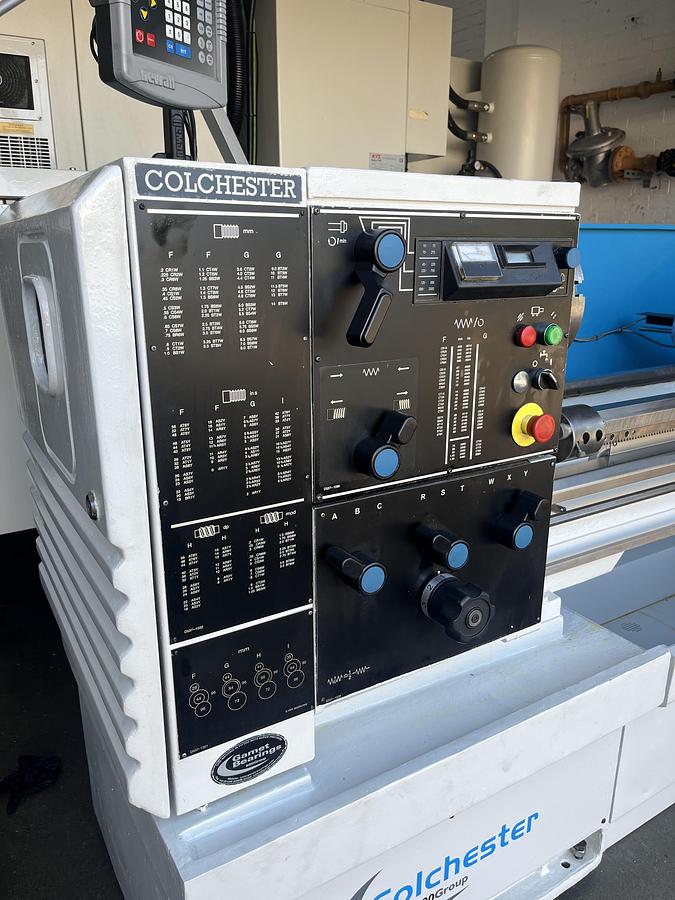

Colchester Triumph VS 2500 variable spindle speed lathe a 2 axis DRO, 3 jaw chuck and Collet Chuck. Also supplied with the machine are all the chuck jaws, quick change tool post holders and tooling that came with the machine. Photographed here as received, better pictures will be supplied once properly prepared. CAPACITY (Metric / Imperial) Swing over bed 400mm 15.7", Swing over cross slide 246mm 9.6", Height of centres 195mm 7.7" Swing in gap 585mm 23", Gap width from faceplate 165mm 6.5", Bed length 1250mm 50" Distance between centres 1250mm 50" SPINDLE Spindle nose D1 - 6 Camlock, Taper in spindle nose bush No 4 MT, Spindle bore 54mm 2.1" Maximum spindle speed 2500 rpm, Spindle speed ranges - Low 14 - 300 rpm 14 - 300 rpm Medium 36 - 830 rpm 36 - 830 rpm High 109 - 2500 rpm 109 - 2500 rpm Maximum spindle motor power 7.5kW 10 HP, Number of Imperial Pitches 56, Range of Imperial Pitches 2 - 56 TPI, Number of Diametral Pitches 20, Range of Diametral Pitches 8 - 56 DP Number of Metric Pitches 51, Range of Metric Pitches 0.2 - 14mm Pitch Number of Module Pitches 20, Range of Module Pitches 0.2 - 3.5 MOD TAILSTOCK Tailstock quill taper No 5 MT, Tailstock quill travel 145mm 5.7" BED Width over bedways 318mm 12.5", Cross slide travel - X axis 250mm 9.8", Travel of top slide 100mm 3.93" SPACE AND WEIGHT Overall machine weight 1800kg 3968lbs
