Robbi Omicron CNC 3206

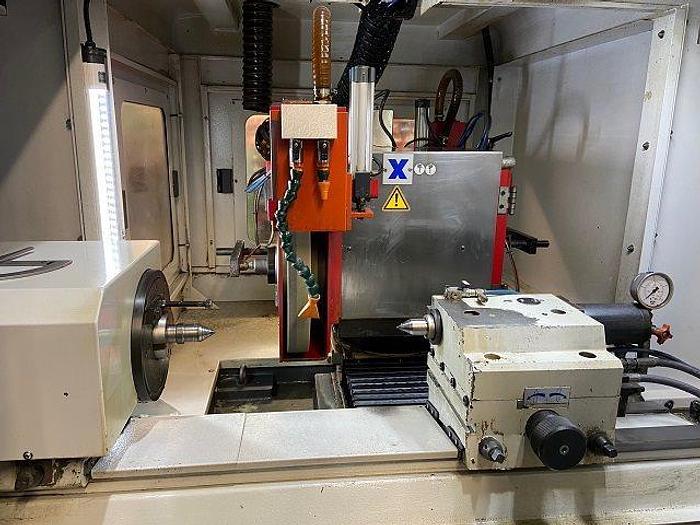

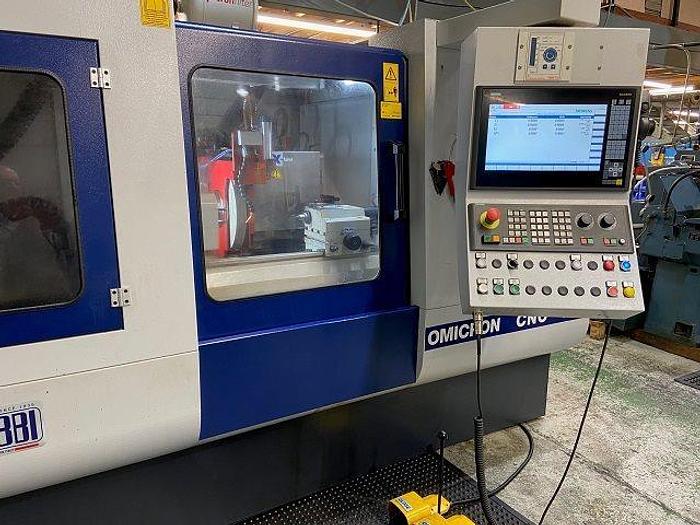

This 2018 built Robbi Omicron CNC 3206 CNC, Universal Grinding Machine, is being offered directly from site in the UK and in superb condition! Fitted with SIEMENS SINUMERIK 840 D SL - PCU 50.5 control, Wheel head and table with automatic electronic feeds, with brushless motors and incremental linear encoders for micro positioning of wheelhead. Also fitted with Re-circulating ballscrews and preloaded nut for wheel head and table movement. Table has manual swiveling for taper grinding with dial indicator gauge. Anti-friction material on wheel head guides, a Hydraulic control for tailstock, pneumatic unit, centralized lub systema and a cooled electrical cabinet. Max. distance between centers 630 mm Max. grinding length 630 mm Height of centers over table 160 mm Swing over table 315 mm Max. weight on centers 120 Max. weight at 150 mm. from spindle nose 40 Kg TABLE 'Z' AXIS Max. automatic traverse 680 mm Speed 0-5 mt/l' Max. swivel on either side +9 -5 Deg WORKHEAD Rotation speed 0-300 rpm Spindle hole diameter 26 mm Internal center taper 4Mt Max. swivel 90 Deg TAILSTOCK Spindle stroke 25 mm Spindle diameter 43 mm Internal center taper 4Mt Wheel rotation speed ( 2 ) 1450-1600 rpm Wheel diam. and bore 450 127 mm Min. & Max. width of wheel 20-50mm Max. swivel + 45deg Max. feed stroke 270 mm INTERNAL GRINDING ATTACHMENT Bore diameter for spindle 80 mm Electric motor 1.5 Kw MOTORS Wheelhead 4 Kw Wheelhead feed 3 Nm Table feed 6 Nm Workhead 6 Nm Hydraulic power pack 0.75 Kw Coolant pump 0.18 Kw DIMENSIONS AND WEIGHTS Length - Width 2470 x 1350 mm Height 1400 mm Workspace required 3150 x 1500 mm Weight 2200 Kg
