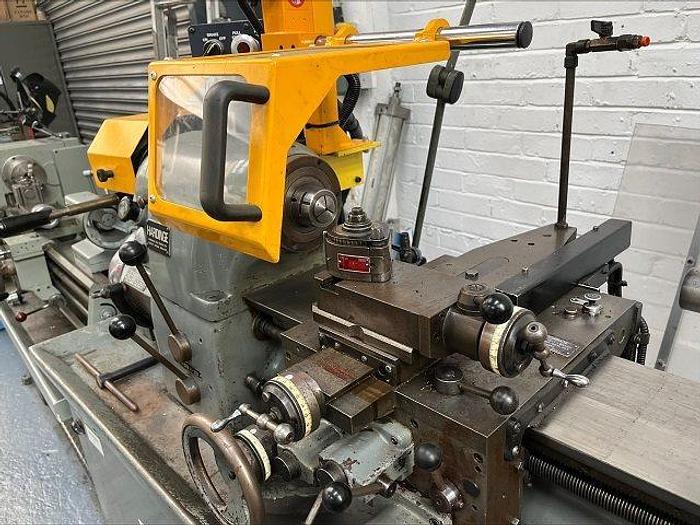

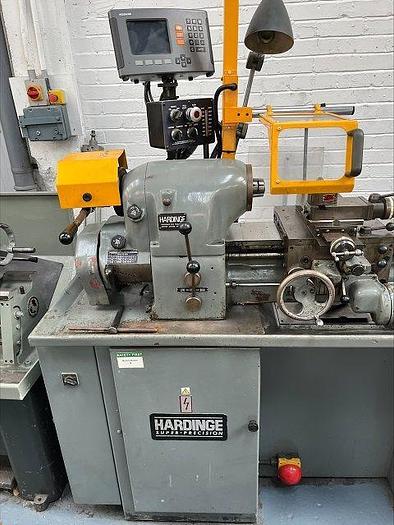

Hardinge Super Precision HLV
Sold
Hardinge Super Precision HLV
Description
Hardinge HLV equipped with, Lever Type Collet Closer with 5C Assorted Round Collets, Spindle Nose Guard, Variable power Feeds to Z & Y, Machine Work Light Quadrant Gear Dorian D25AXA Quick Change Tool Post with 10 Tool Holders, Adjustable Carriage Feed Stops 1 HP Main Motor, 1/6 HP Coolant Pump, 230-460, Wired for 3 Phase machine 415 Volt
Variable Spindle Speeds: 125 to 3000 RPM Via 2-Speed Motor Spindle Nose Hardinge
5C Taper Spindle Hole: 1-1/4" / 27mm Cross Slide Travel: 5-1/2"/ 140mm Compound
Specifications
Manufacturer | Hardinge |
Model | Super Precision HLV |
Condition | Used |
Stock Number | lu/0209 |
Swing over the bed | 11"/ 280mm |
Swing over the carriage | 9"/ 230mm |
Swing over the cross slide | 6"/150mm |
Distance between centres | 18"/450mm |
Slide travel | 3"/ 75mm |
Name of machine | Hardinge Super Precision HLV |
