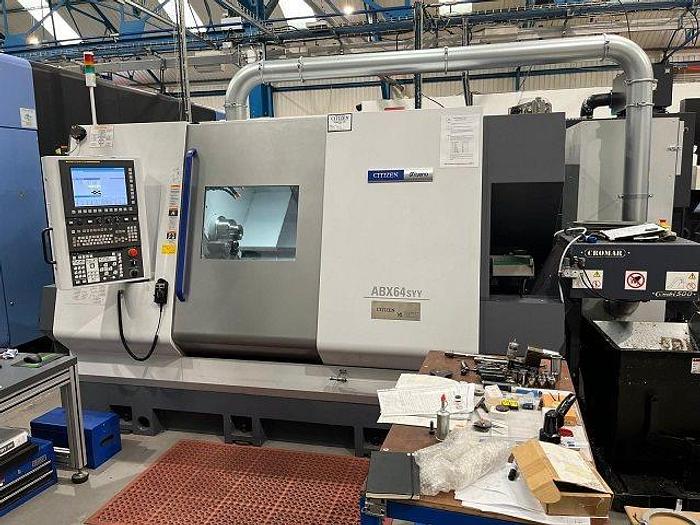

Miyano ABX-64SYY

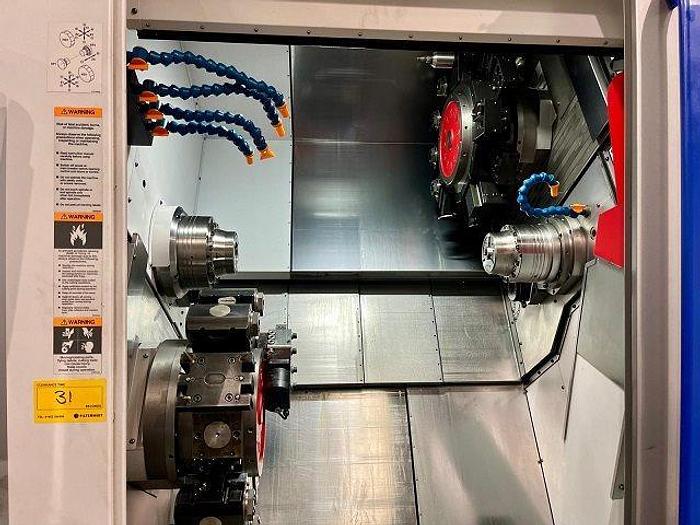

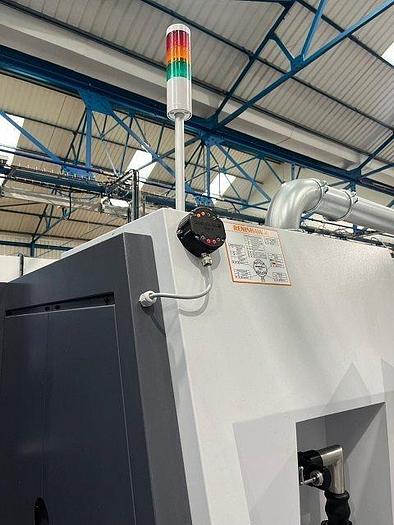

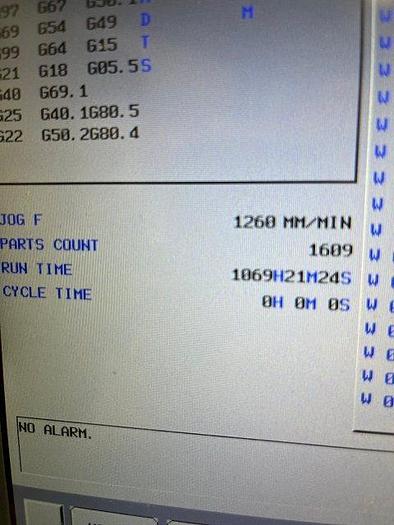

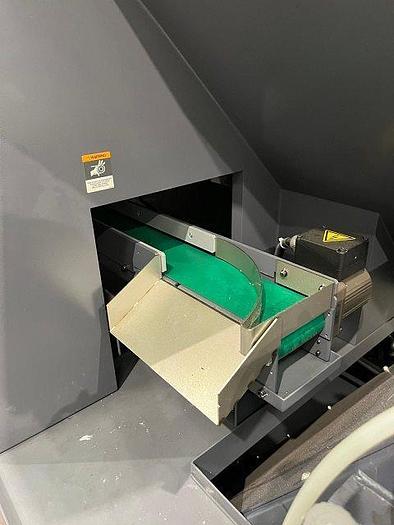

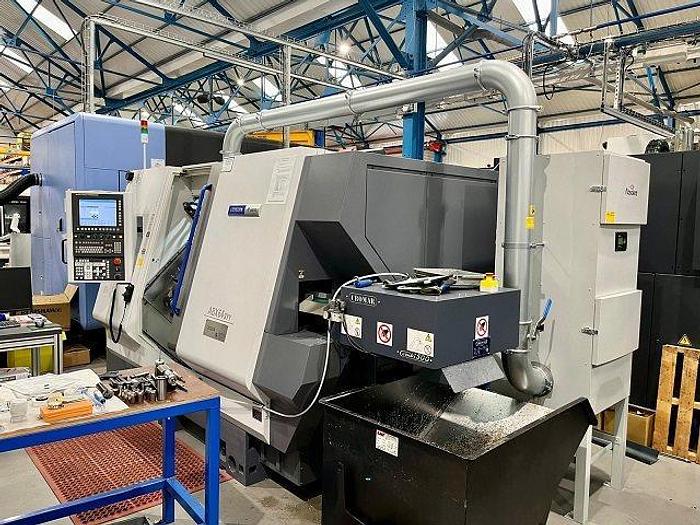

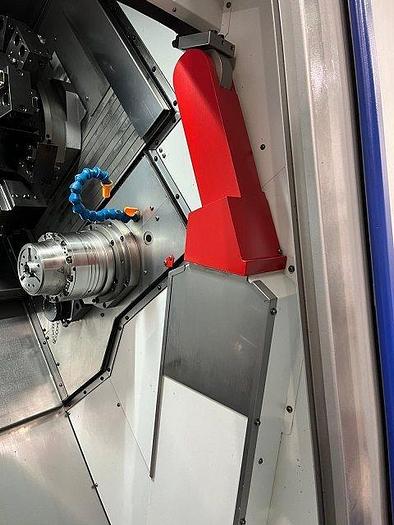

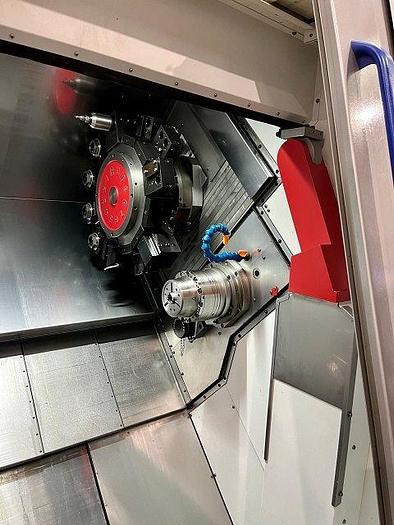

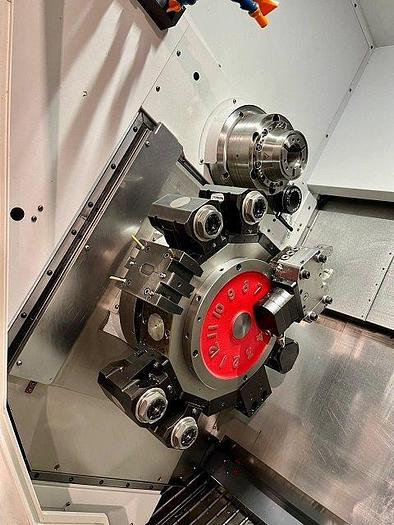

In the market for a Top of the Range Miyano? Then have a look at this one! 18 months old and just over 1000 hours on the clock…it is as new! Still on site where it can be seen under power. The following is from Miyano’s Spec sheet: The Miyano ABX-64SYY – is a Top of the range, twin spindle, twin turrets with Y-axis on each turret. The ability to machine simultaneously at the left and right spindles using the upper and lower turrets, both featuring a Y-axis function, means that complete front and back machining of products with complex shapes can be accomplished simply and in a short time. High rigidity and high torque with 40 Nm driven tools. The use of rigid 40 Nm driven tool drives capable of heavy cutting ensures stable milling. Two turrets with a total of 24 tool positions, all driven, handle complex machining just like a machining centre. This machine also features the optional parts conveyor, Hainbuch collet chucks on both spindles, high pressure coolant, probing and a steady rest that’s mounted on the lower turret. Machining Capacity and Chuck System Maximum Machining Diameter of Bar Work SP1/SP2 ø64/51mm Collet Chuck SP1/SP2 Stationary Power Chuck SP1/SP2 6″/6″ hydraulic drive Standard Turning Length 125mm Spindle Spindle Nose SP1/SP2 A2-8/A2-6 Spindle motor(30min./Cont.) SP1 15/11kW SP2 7.5/5.5kW Spindle Speed Range SP1 50 – 5,000min-1 40 – 4,000min-1 SP2 50 – 5,000min-1 Turrets(Upper L/R Turrets & Lower Turret) Type of Turret 2 x 12 Station Turret Shank Height of Square Turning Tool □20mm Diameter of Drill Shank ø40mm ø20mm ø25mm Slide Stroke X1, X2 axis 190mm Z1/Z2 axis 550mm/721mm Y1, Y2 axis ±40mm Zs axis 756mm Rapid Traverse Rate X1, X2 axis 16m/min Z1/Z2 axis 30/20m/min Y1, Y2 axis 12m/min Zs axis 30m/min Driven Tools Maximum Number of Revolving Tools 24 Rotation speed of Driven Tools 60 – 6,000min-1 Driven Tool Motor AC Servo 4.5kW Machine Dimensions Machine Height 2,222mm Floor Space 3,290×2,204mm Machine Weight 10,900kg
