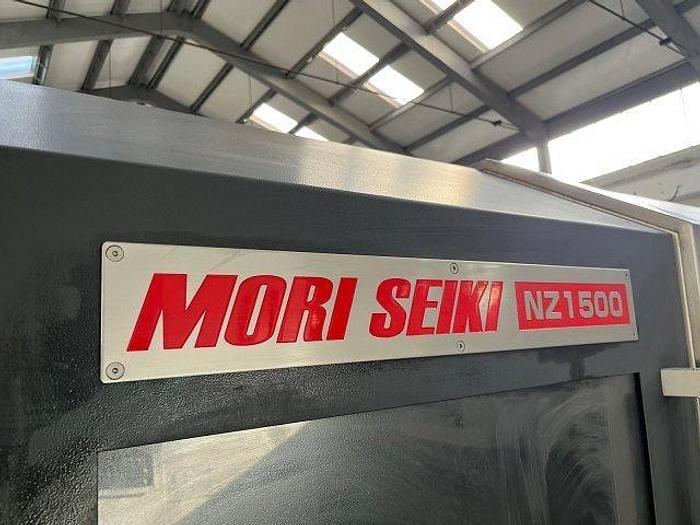

Mori Seiki NZ1500

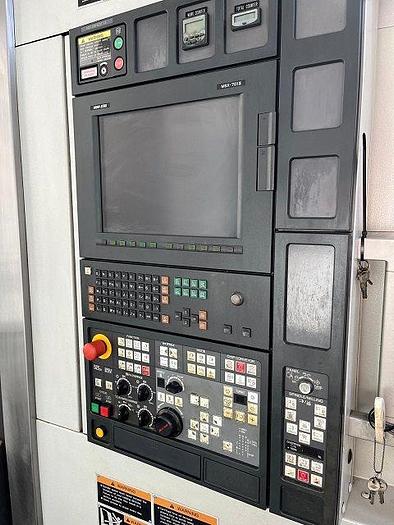

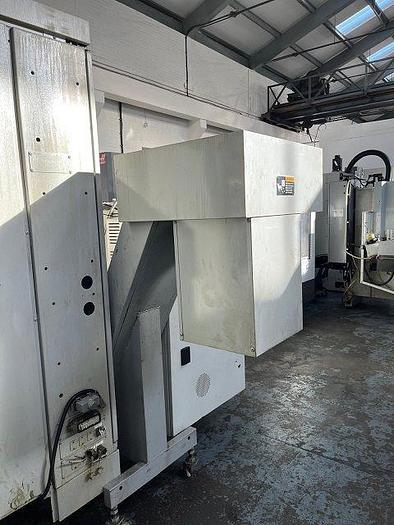

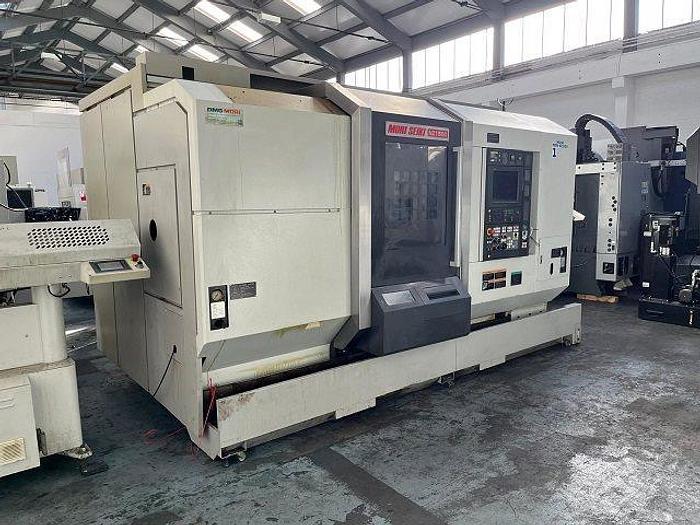

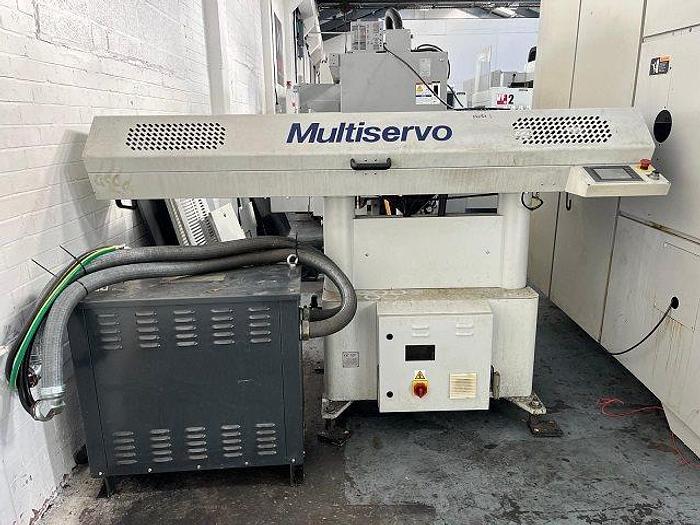

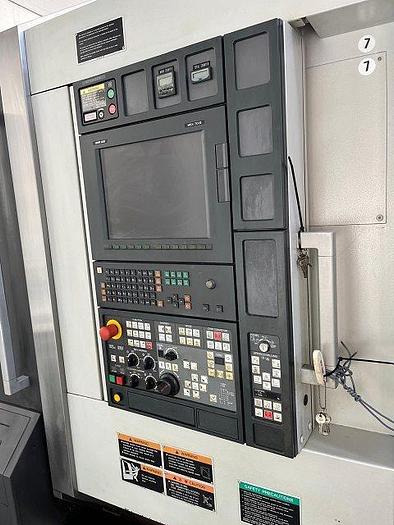

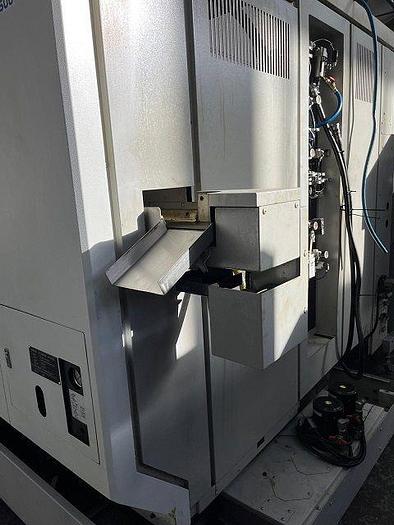

Used 2009 Mori Seiki NZ1500, Twin Turret, Twin spindle CNC Lathe with Barfeed, Swarf conveyor, Parts unloader, and parts conveyor. Fitted with the Mori Seiki Fanuc based MSX-701 iii control. Control: MSX-701III Capacity: Swing over bed 800 mm. Max distance between spindle nose 1.130 mm. Max. turning diameter 320 mm. Max. workpiece diameter for transferring 300 mm. Max. turning length 810 mm. Bar work capacity 52 mm. Axis: X1 Axis Travel 210 mm. X2 Axis Travel 210 mm. Y1 Axis Travel +65 / -45 Y2 Axis Travel -65 / +45 Z1 Axis Travel 810 mm. Z2 Axis Travel 810 mm. Spindle 2 B-Axis Travel 900 mm. C Axis in Main Spindle INCLUIDO/ INCLUDED Feeds: Feed X1/X2 Axis 30.000 mm./min. Z1/Z2 Rapid Feed Z1/Z2 Axis 50.000 m./min. Work feed 0-5000 mm/min. Main Spindle Speed ranges 2 Quill diameter 61 mm. Nose A2-5 Min Spindle indexing range 0.001º Spindle 2 Quill diameter 61 mm. Nose A2-5 Min Spindle indexing range 0.001º Turret Turret type 16 station x 2 Driven Tools Speed 6.000 rpm Max Power Driven Tools 7.5 / 5.5 kW Equipment Swarf Conveyor Parts unloader Parts conveyor Bar Feed Hydrafeed Multiservo Machine Weight 8.300 kg Machine Dimensions (LxWxH) 3.930 x 2.718 x 2.320 mm
