CMZ TB-67M

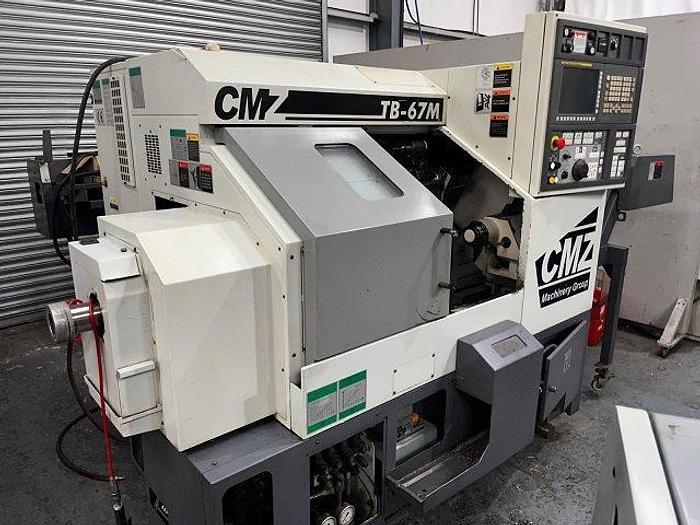

Used 2012 CMZ TB67M is a compact, high-performance CNC lathe designed for precision turning in a variety of industries, including automotive, aerospace, and general manufacturing. This machine is capable of handling complex parts with tight tolerances, its has a powerful spindle and driven tool turret. The machine is in very well-maintained condition and available in the Bristol showroom for a powered Demo.

Technical Specifications: Max. Swing Diameter 640mm

Turning length: 400mm

Maximum turning Ø: 340 mm

X-Z travels: 200-400mm

Spindle Nose: A2-6,

Max RPM: 4,000 rpm

Spindle Size / max bar Ø: 66mm

Power: 17.4 Kw

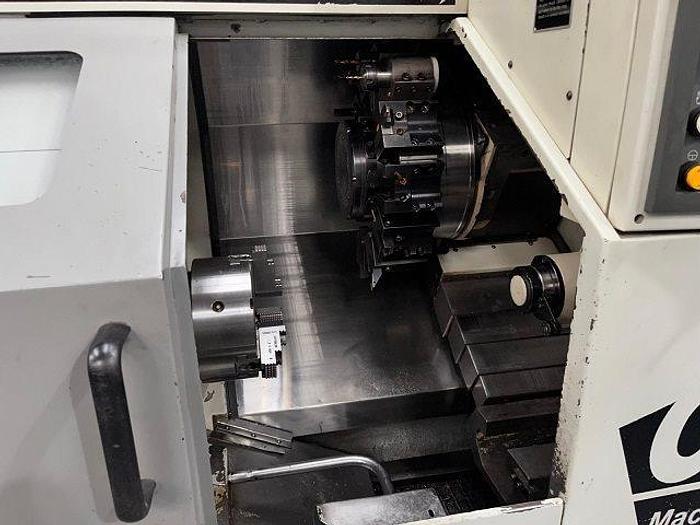

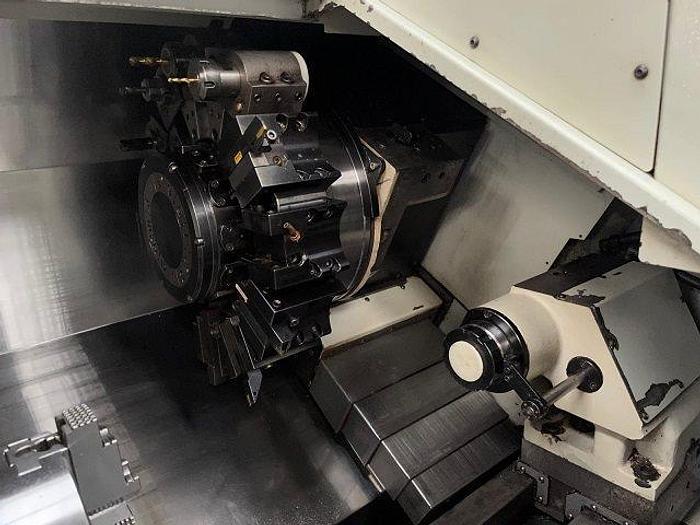

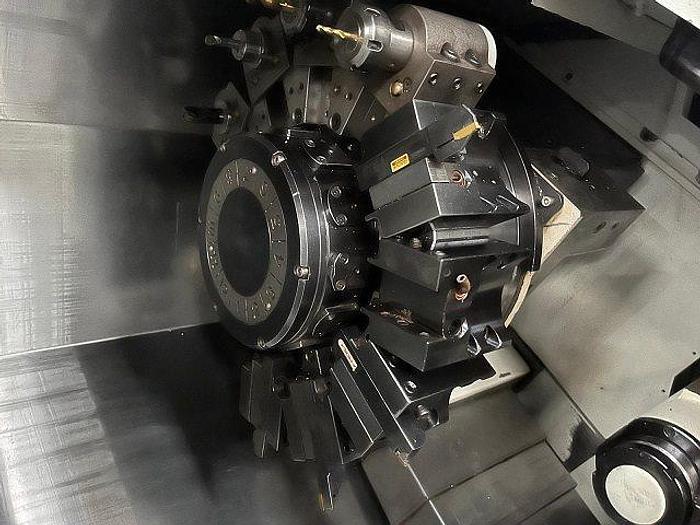

Turret 12 positions.

No of driven stations: 12

Live Tool Power: 6 Kw

Motorized rotation: 4,000 rpm

Tailstock, shank travel: 120 mm

Tailstock Quill Dia: 90mm

X/Z Rapid Feed Rate: 30 m/min

Machine Dimensions (L x W x H): 1,653 x 1,620 x 1,670 mm

Machine Weight: 3,700 kg

  Additional Equipment: C-Axis & Driven Tools

Parts Catcher

Swarf Conveyor

Tailstock Tool Measuring Arm

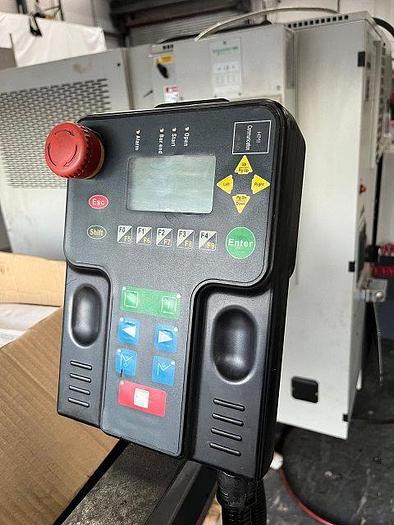

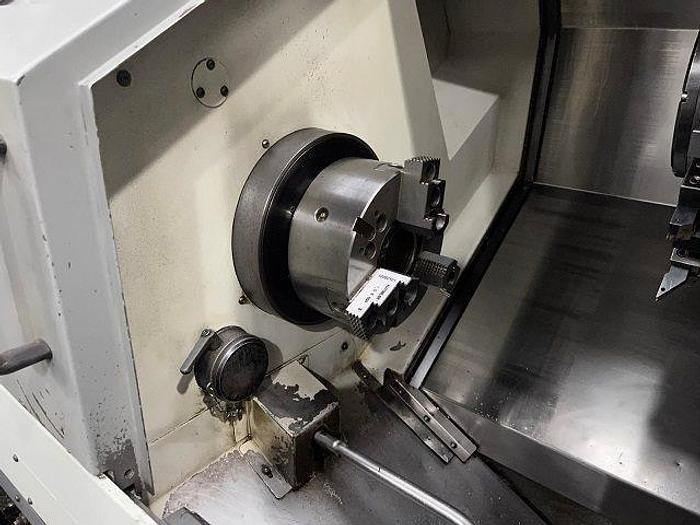

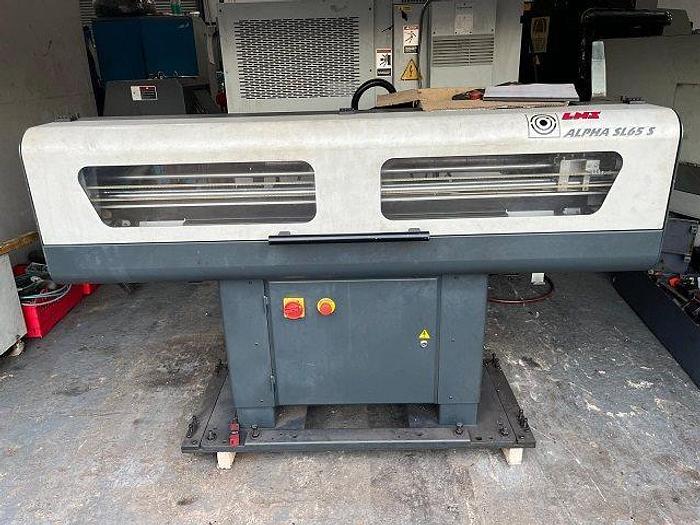

Suite of station & driven heads LNS Bar Feeder 3-Jaw Hydraulic Chuck
