HAAS TL-3
Sold
HAAS TL-3
Description

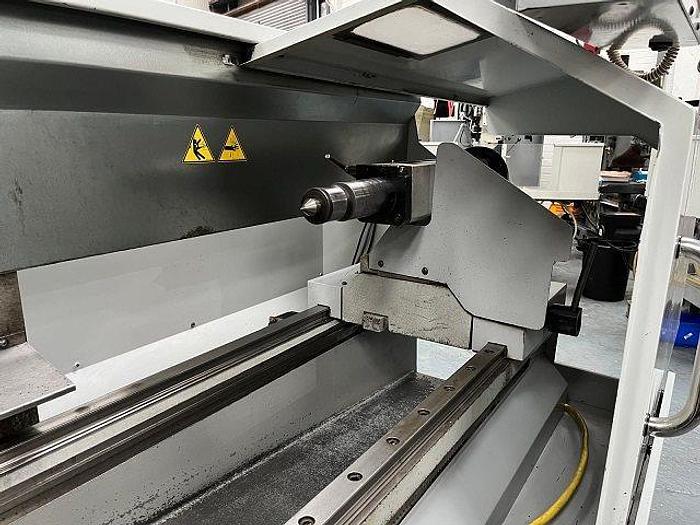

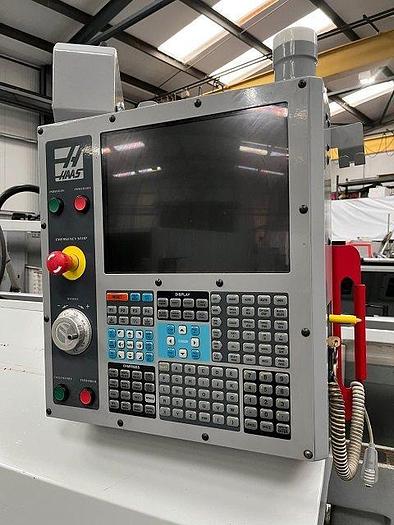

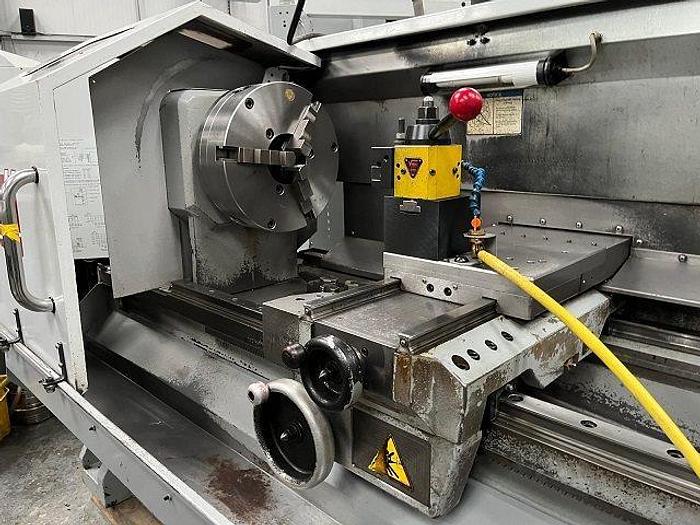

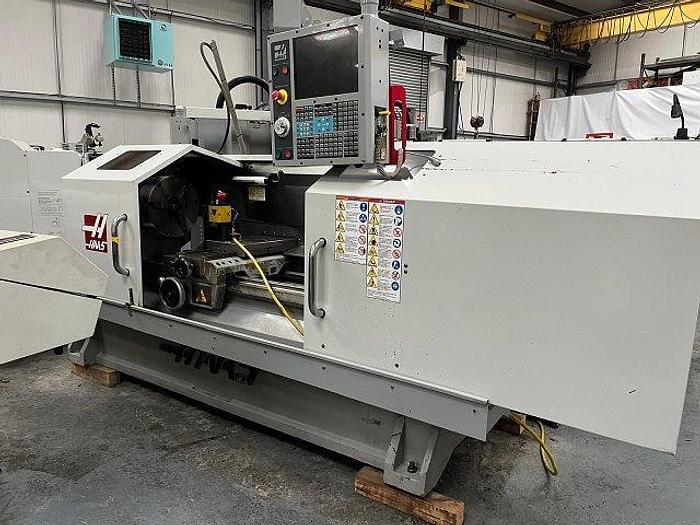

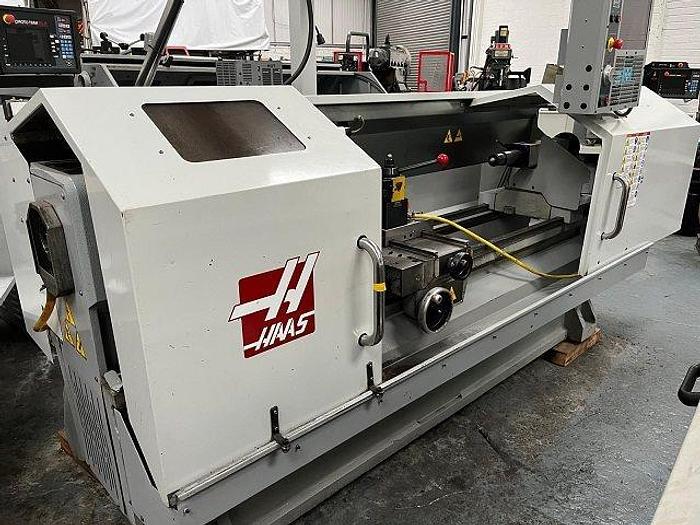

HAAS TL3 12” screen, 3 jaw chuck, quick change tool post, tailstock and coolant equipment. ready for a powered demonstration in the Bristol showroom. Max Turning length 1524 mm Max Turning Diameter 508 mm Swing over bed 508 mm Swind over Cross Slide 330.2 mm X-axis Travel 304.8 mm Z-axis Travel 1524 mm Spindle taper A2-6 Spindle borem 88.9 mm Max spindle speed 1800 rpm Spindle motor power 22.4 kW Tailstock Foot Print LxWxH 3073.4 × 1574.8 × 2032.0 Weight 2949.2 kg
Specifications
| Manufacturer | HAAS |
| Model | TL-3 |
| Year | 2008 |
| Condition | Used |
| Stock Number | clu/0366 |
| Name of the machine | HAAS TL-3 |
| Spec | Spindle Bore 88.9 mm | Max Swing 508 mm | Travel X 304.8 Z 1524 mm |
