Leadwell T-8M

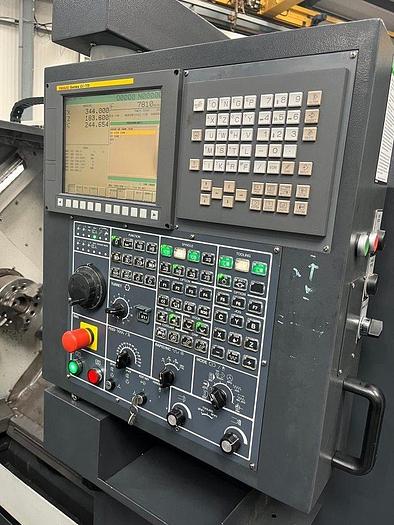

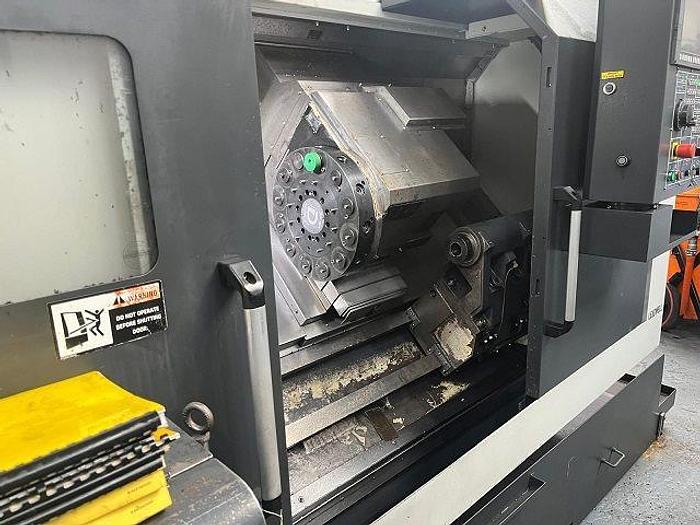

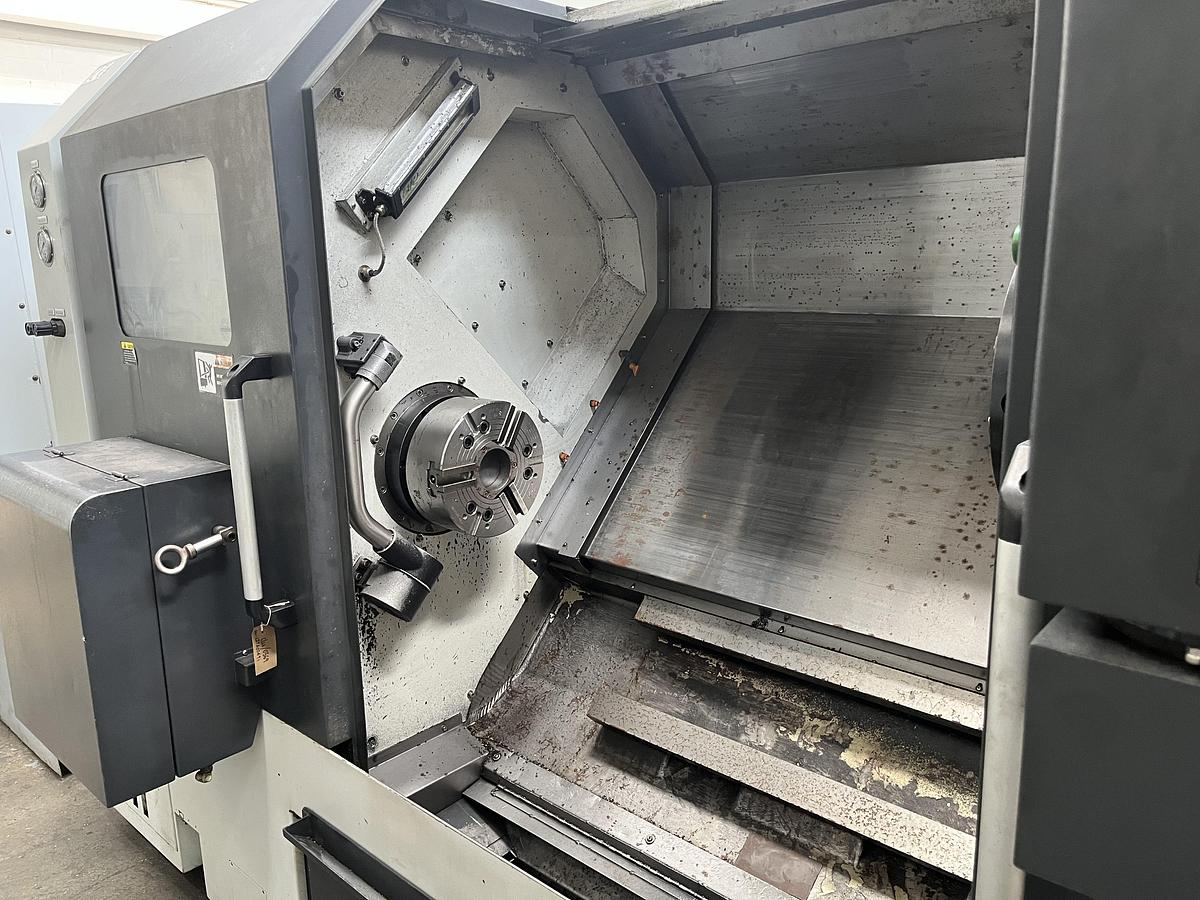

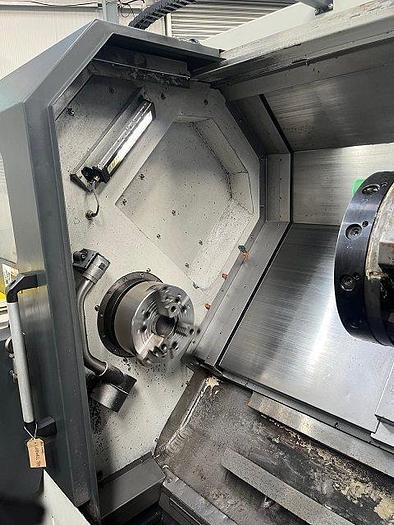

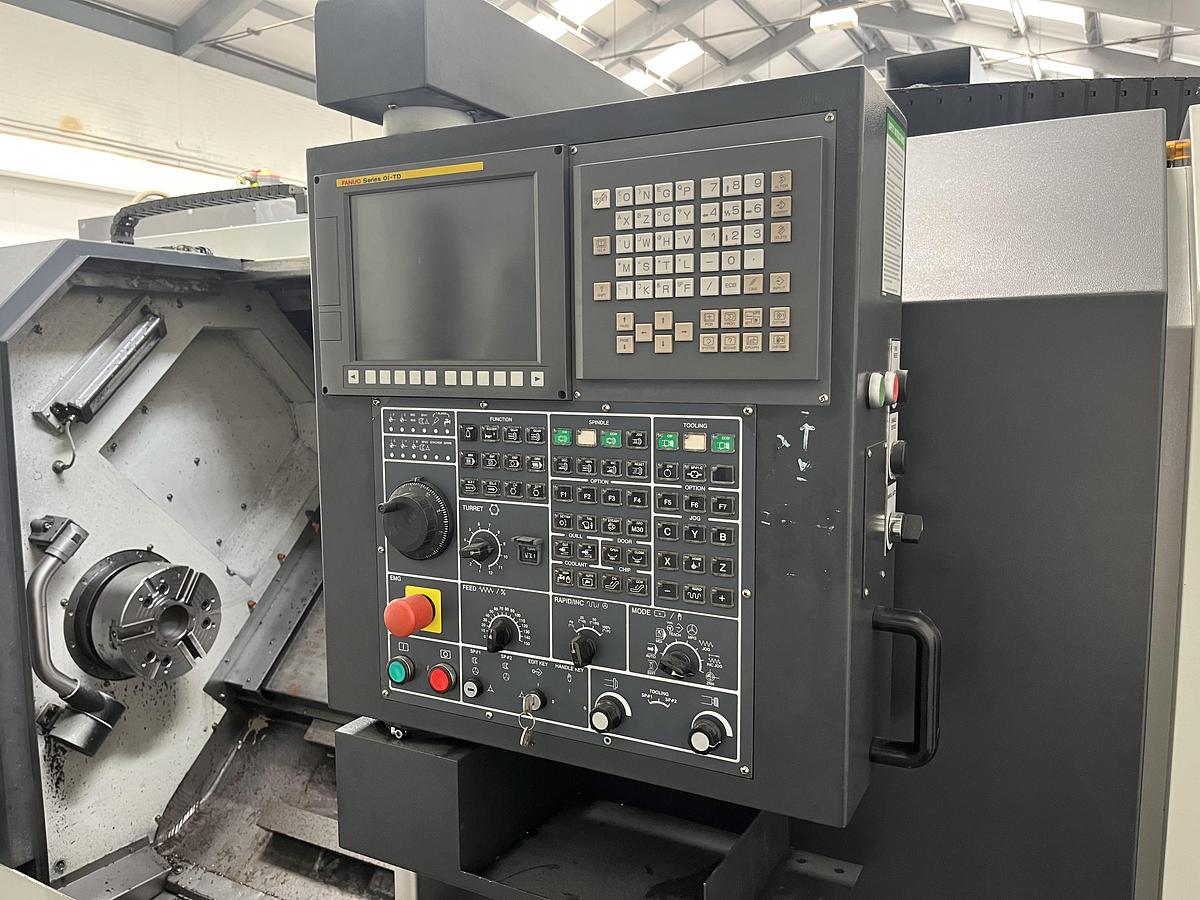

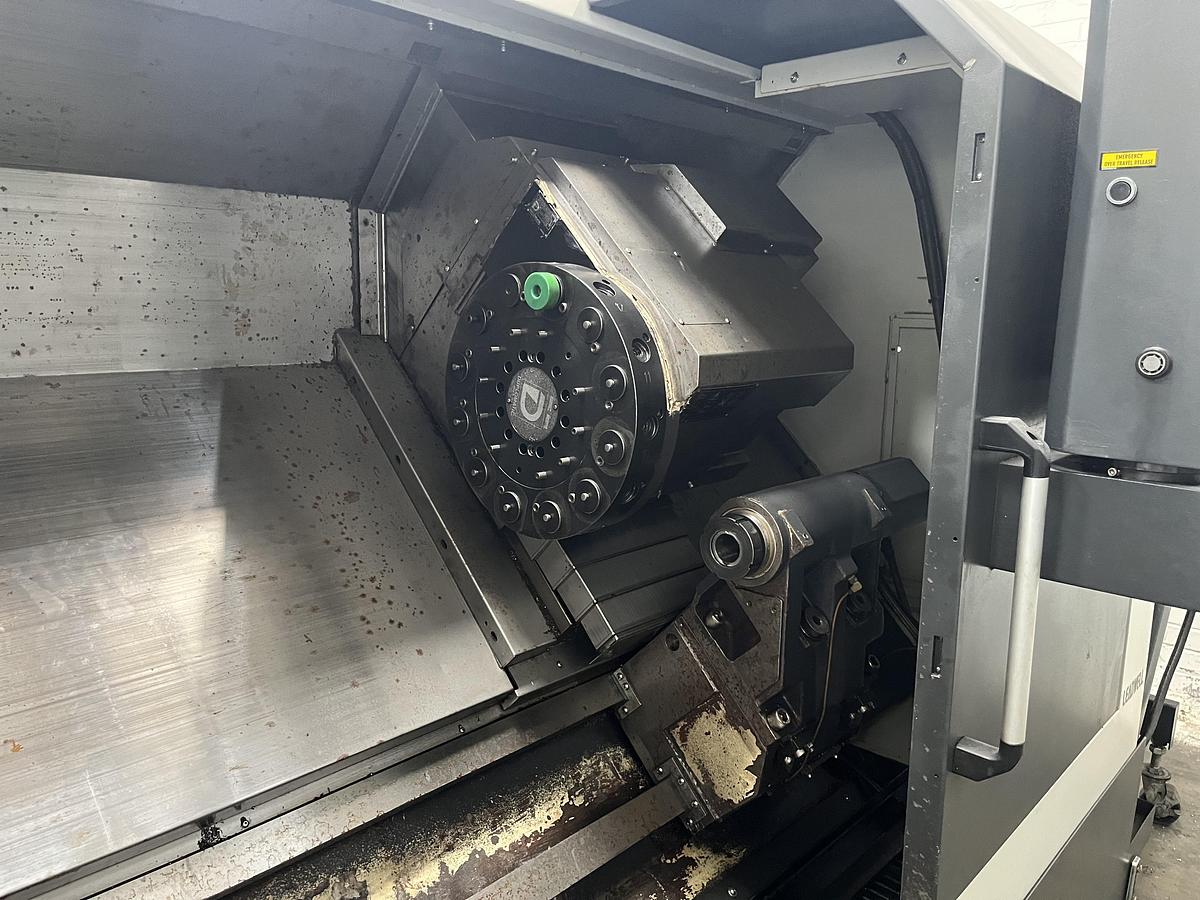

A 2014 built Heavy duty Fanuc controlled CNC Lathe with 10” power chuck, 77mm Spindle bore, 745mm turning length, and tooling package. Model T-8M Capacity Max swing mm 670 Bar capacity mm 77 Chuck size inch 10 Std Travel X axis mm 250 Z axis mm 790 Spindle Spindle speed rpm 35-3500 Spindle nose A2-8 Through hole spindle mm 89 Turret Number of tool positions 12 Turret indexing time sec 1 Feedrate X rapid traverse m/min 20 Z rapid traverse m/min 24 Motor Spindle Motor HP 25 Miscellaneous Machine weight kg 5000
