Description
2010 Haas Super Mini Mill 2, well specified. Supplied with 10,000 RPM BT 40 spindle, Renishaw Part Probe, Haas 5C 4th Axis indexer and tailstock. In super condition…photos as received and awaits preparation.
Table & Movements:
Length: 1016 x 40″, Width: 14″
Number of Std T-Slots: 5, T-Slot Width: 5/8″
Max Weight on Table: 1500 lbs, Travels: X, Y, Z:
30M/min rapids,
21m/min cutting rate,
Spindle: Taper Size: 40

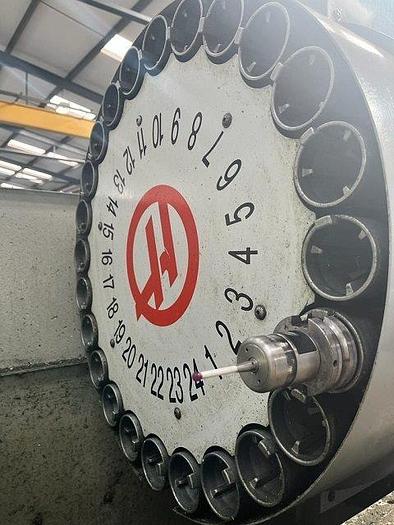

24 tool Side Mount swing arm ATC
General: Air Required: 100 psi, 4 scfm
Overall Dimensions: 70″ x 72 x 90″ High, Weight: 5500 lbs
Accessories:
Renishaw Part Probe,
Haas 5C indexer with tailstock,
USB Drive,
User Definable Macros
Spindle Orientation,
Coordinate Rotational
Scaling Rigid Tapping,
Programmable coolant,
Flood Coolant system,
Tooling Shelves
Specifications
Manufacturer | HAAS |
Model | Super Mini Mill 2 |
Year | 2010 |
Condition | Used |
Stock Number | cmu/0466 |
Name of machine | HAAS Super Mini Mill 2 |
X-axis | 508mm x 406mm x 356mm |
Speed range | 0 – 10,000 RPM, |
15 hp vector dual drive max torque | 90ft-lb @ 2000 RPM, |
Tool changing time | 1.6 Seconds |
Power | 220v / 66FLA / 3-Phase |
