XYZ VMC 560 Mini Mill

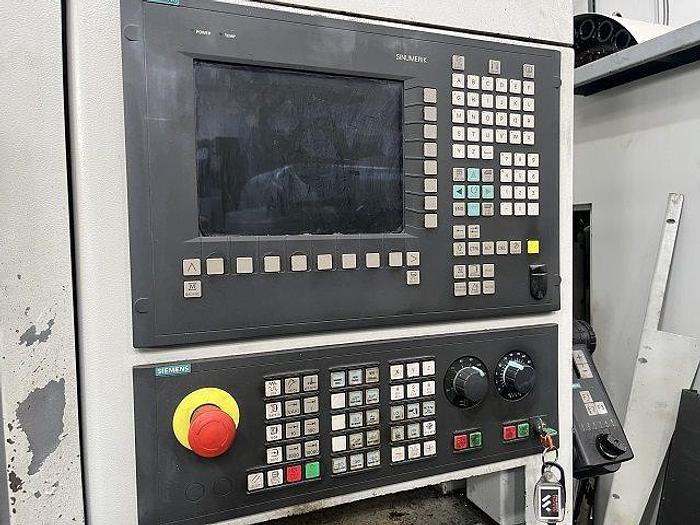

XYZ VMC 560 Mini Mill with Through spindle coolant Seimens 810D with shopmill control Side mount 16 tool ATC 2008 built. Spindle Taper BT 40 Spindle to Table 100 - 600 mm Spindle Speed 60 - 8000 rpm Table Size 610 x 370 mm X Axis Travel 560 mm Y Axis Travel 400 mm Z Axis Travel 500 mm Max Table Load 300 kg Nett Weight 3100 kg Spindle Drive Motor 13 hp / 10 hp Column front to table centre 340 - 740 mm Rapid Feed 20 M/min Siemens 810 Shopmill 1 - 20000 mm/min T Slot Size 16 mm T Slot Number & Pitch 4 @ 80mm Tool Magazine Capacity 16 Tool Max Tool Diameter 100 mm Max Tool Weight 7 kg Coolant Capacity 180L Ball Screw Size 32 mm P8 AC Servo Motor 8nM (2Kw) Z 3Kw Tool Change Time 10 Sec / 2.5 Sec Spindle Centre To Column 455 mm Through spindle High pressure coolant
