Hurco VMX42HSI

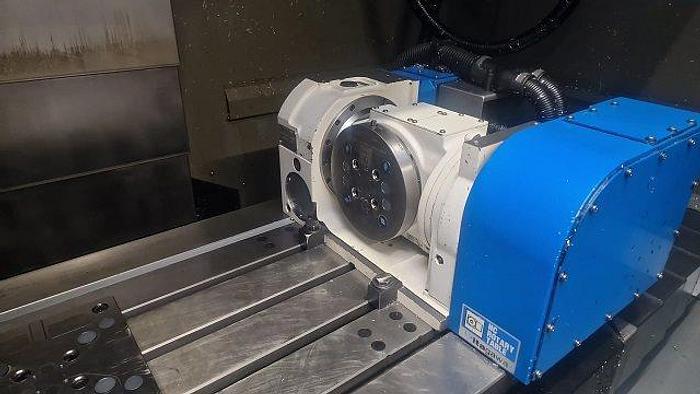

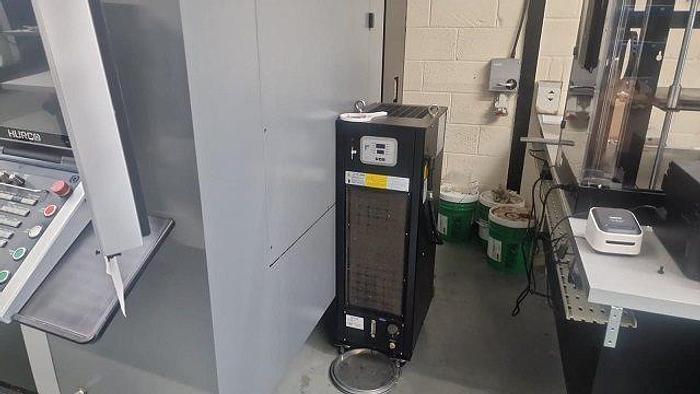

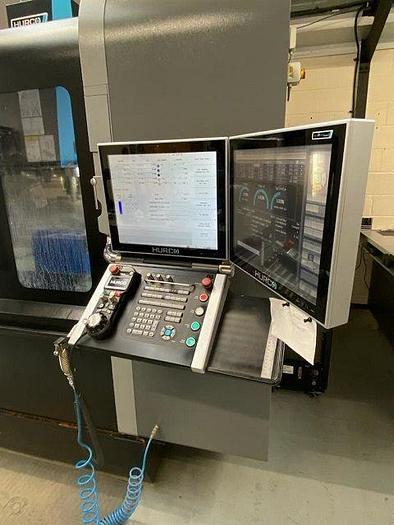

Immaculate 2019 Hurco VMX42HSi with Kitagawa 5 axis table, only 2500 spindle hours! This machine is fitted with an 18,000RPM spindle with spindle chiller, High pressure through spindle coolant, Swarf conveyor, Filter mist unit and Hurco’s MAX5 Dual screen Winmax control system. Travels & Capacity X, Y, Z Axis Travel 42 x 24 x 24 in (1067 x 610 x 610 mm) Spindle Nose to Table (Min-Max) 6.0 in (152 mm) Table Size 50 x 24 in (1,270 x 610 mm) Max. Weight on Table 3,000 lbs (1,360 kg) T-Slot Size 5 x .71 in (5 x 18 mm) Peak Spindle Motor 47 hp (35 kW) Spindle Torque (peak - 1 min) 88 ft lbs @ 2,800 rpm (119 Nm @ 2,800 rpm) Number Of Tools 40 Tool Changer/Spindle Spindle RPM 18000 Tool Type HSK 63 Form A Max Tool Diameter 3 in (76.2 mm) Max Tool Length 11.8 in (300 mm) Max Tool Weight 17.6 lbs (8 kg) Max Programmable Feedrate 1,575 in/min (40 m/min) Feedrates Rapid Traverse X,Y,Z Axis 1,771 in/min, 1,771 in/min, 1,575 in/min ( 45 m/minute, 45 m/minute, 40 m/minute) Machine Height 112.6 in (2,860.6 mm) Required Floor Space 181.1 x 156.9 in (4,600 x 3,984 mm) Machine Weight 15,600 lbs (7,091 mm) Additional Options: Linear Scales on X,Y & Z Axes Kittagawa TT150 5 Axis Rotary Table Filtermist Extraction Unit FX6002M CTS 20 Bar (Coolant Through Spindle) 2 off Universal Heads. Model UAH140. HSK63A drive. Tapered Torque Pin and Interlock on 65mm centres to allow Auto tool change. ER16 (10mm) Collet Chuck. Output. 1:1 Speed Max. Speed 3,500rpm. Weight 6.0kg & Spindle Mounted Anti Rotation Block Ethernet Networking & Ultimonitor Software Renishaw RTS Tool Probe & RMP600 Part Probe Programmable Air Blast Rigid Tapping
