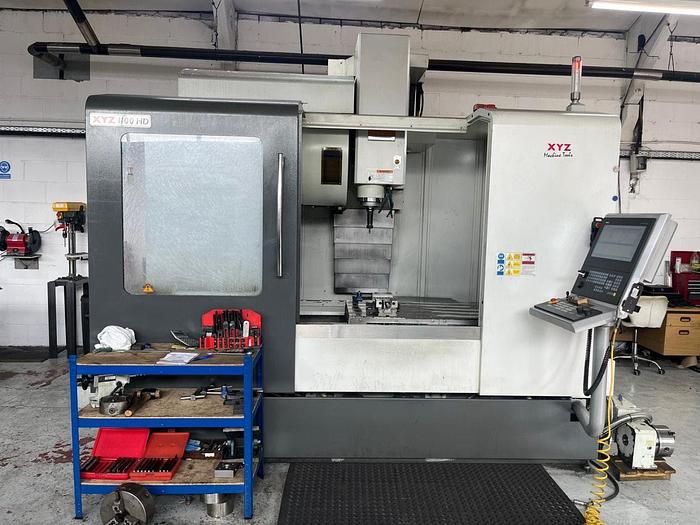

XYZ VMC 1100HD

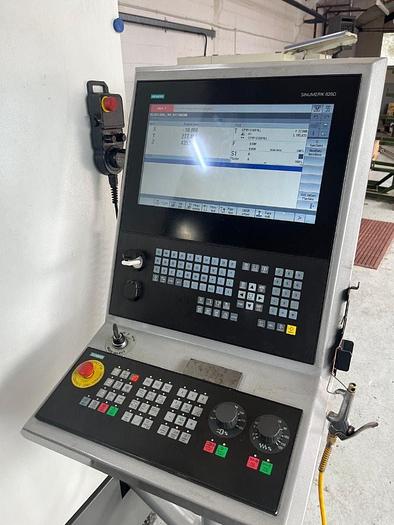

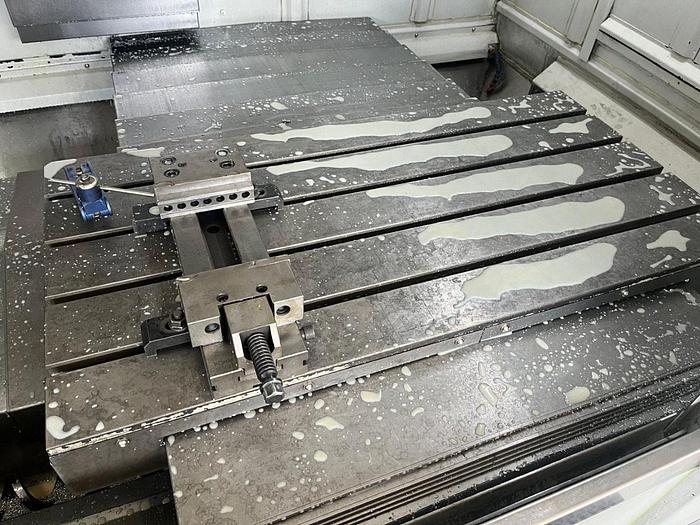

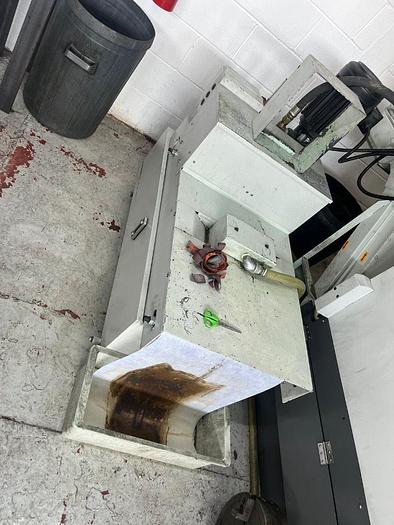

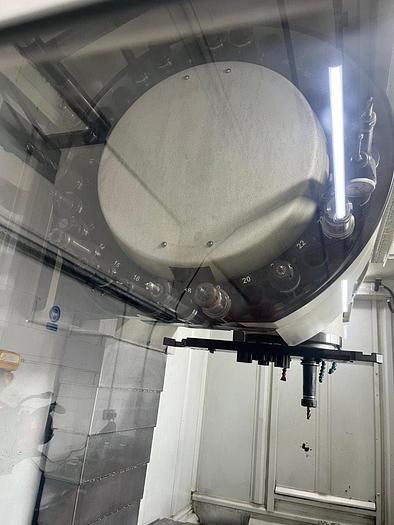

An immaculate 2018 built, XYZ VMC 1100HD vertical machining centre with Siemens Wide Touch Screen 828D with Shopmill control, 4 th Axis, High Pressure Flood & Through Spindle Coolant system, optimised Digital Servo Drives, Hardened Table, Rigid Tapping, Swarf Augers, Swarf Conveyor & Bin, LED Work lights., 30 Station Arm Type, Pneumatically Counter Balanced Head, Remote Electronic Handwheel, Networking & USB connections. Axis Table Travel 1,100mm Y Axis Table Travel 610mm Z Vertical Travel 610mm Table Size 1,200 x 600mm Spindle Centre to Column 675mm Spindle to Table 150 - 760mm Column Front to Table Centre 360 - 970mm Rapid Feedrate 24 M/min Cutting Feedrates 1 - 24,000 MM/min Max Table Load 1,500kg T Slot Size 18mm T Slot Number & Pitch 4 off @ 125mm Pitch Spindle Speeds 5 - 10,000 rpm (12,000 Opt) Spindle Motor 21kW (28hp) Spindle Taper BT40 (SK & Cat Opt) Toolchanger 30 Station Arm type Toolchange Time 2.5 secs Max Tool Diameter 78mm Max Tool Weight 8kg Coolant Tank Capacity 240L Ballscrew (Grade C3) 40mm Dia P12 AC Digital Servo Motors Max Torque X = 20 Nm / Y = 20 Nm Z = 20 Nm 3,000 rpm Machine Weight 7,000kg Footprint 3,250 x 3,500 x 2,810mm
