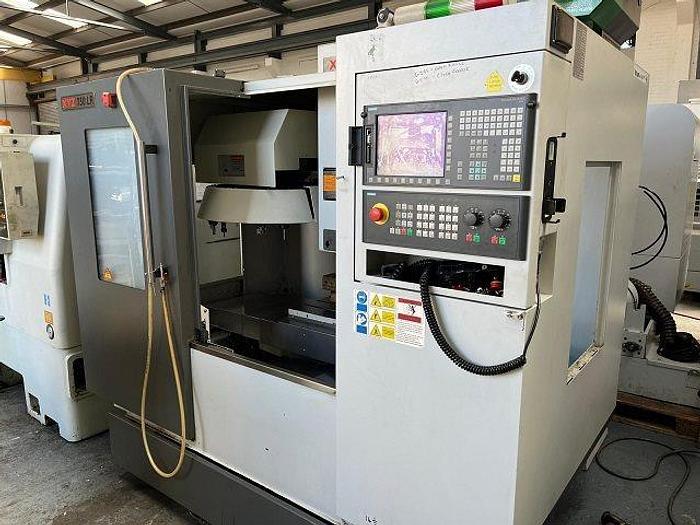

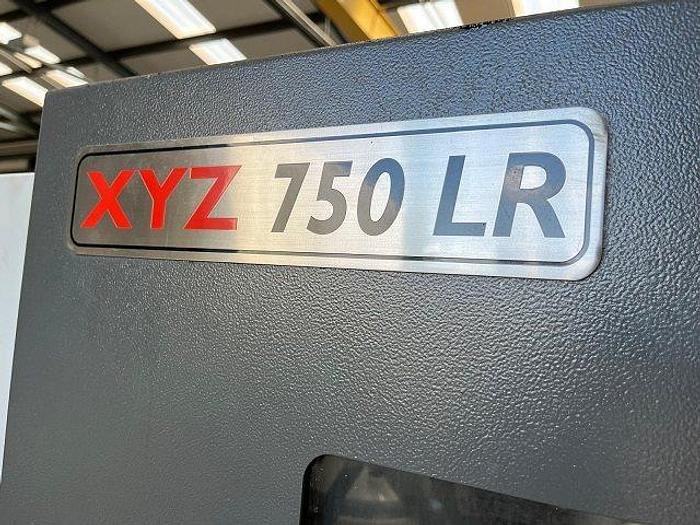

XYZ 750 LR

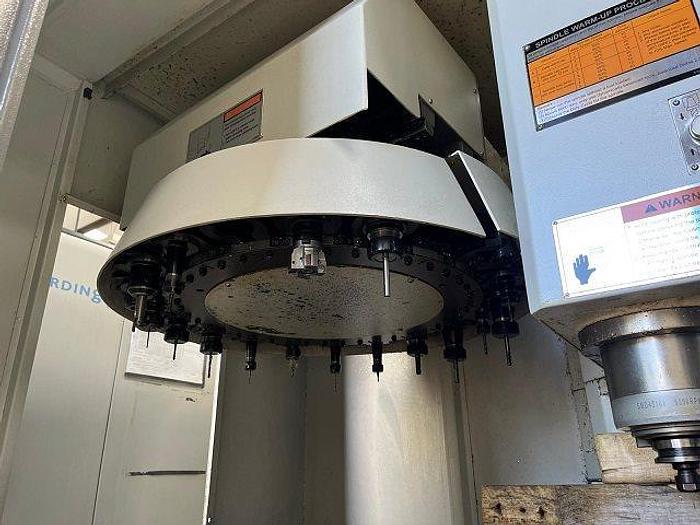

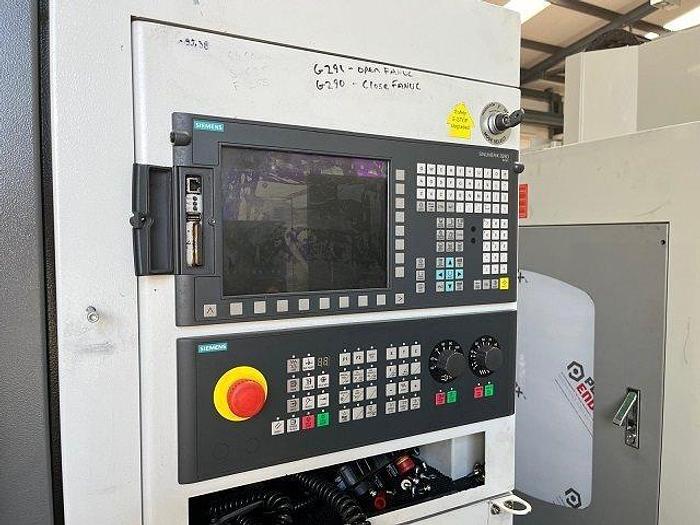

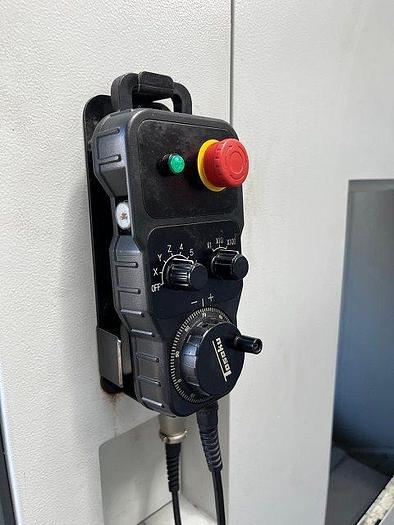

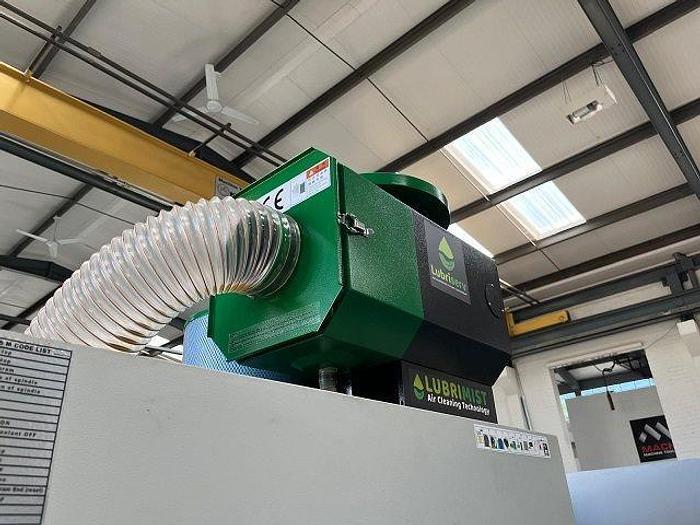

XYZ 750 LR VMC fitted with the extras that you’d have thought would be standard equipment!! 20 Tool Carousel ATC, Shopmill, MPG contour handwheel and mist extraction. Siemens 828D Control with ShopMIll X-Axis Travel 750mm Y-Axis Travel 440mm Z-Axis Travel 500mm T Slot Size 3 x 16 x 100mm Maximum Table Load Capacity 500Kgs Distance from spindle nose to working surface table 100 – 600mm Distance from spindle centre to main column 500mm Spindle Taper BT40 Spindle Speeds to 8,000rev/min Rapids 20m/min Cutting Feed Rates (XYZ) 1 – 20,000mm/min Linear Rail Slideways Max’ Tool Weight 7Kgs Tool Change Time (T-T) 8 Secs Drive Motor: Spindle Drive Motor 10HP Coolant 1/4HP Chip Wash 1/4HP
