HAAS VF2-SS

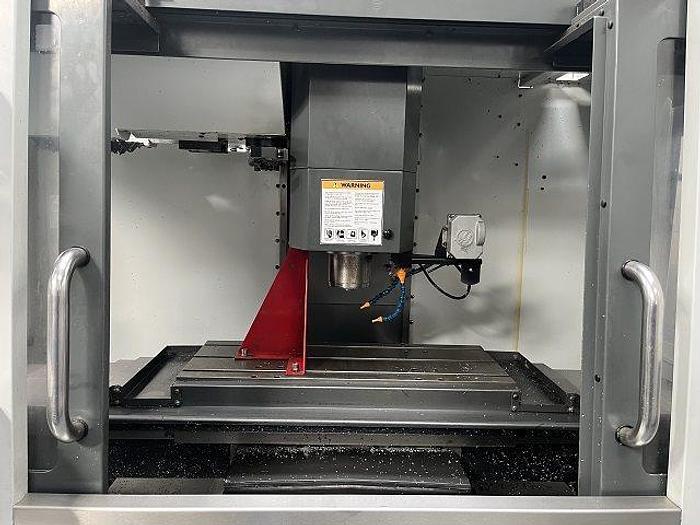

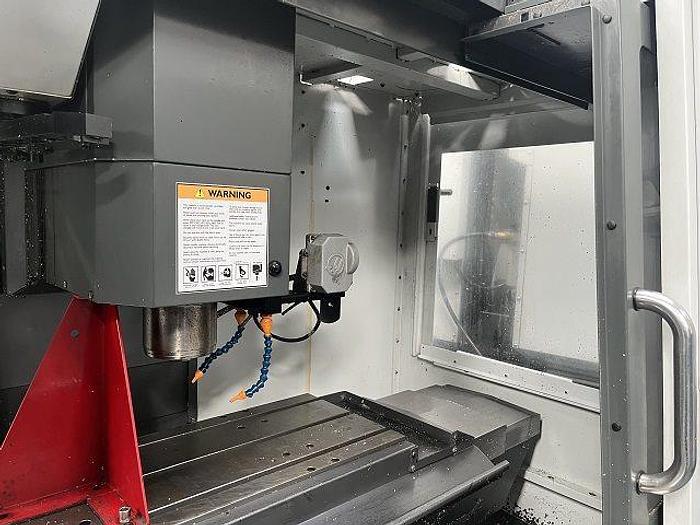

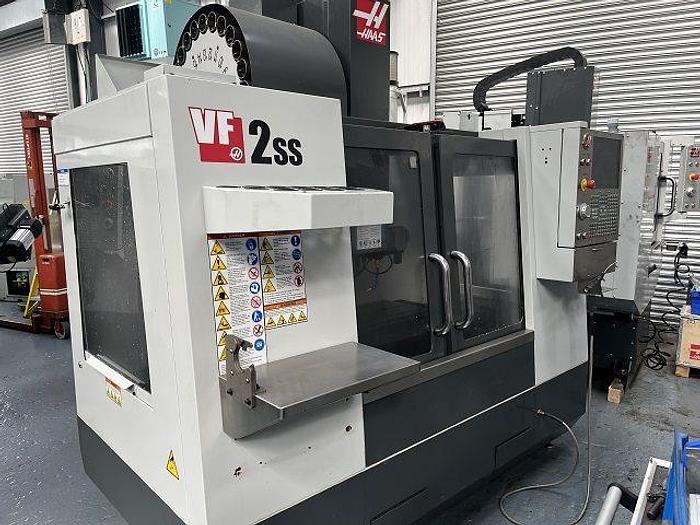

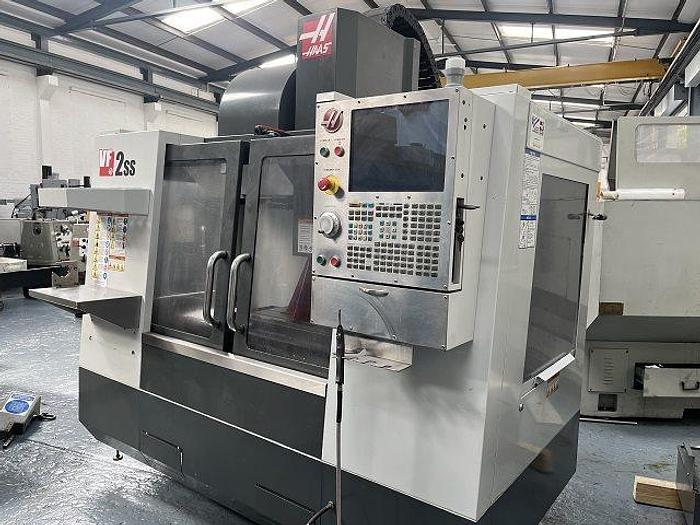

2010 immaculate HAAS VF2-SS VERTICAL MACHINING CENTRE. An immaculate and very well-equipped example, 12,000 RPM spindle, Photo'd as received, so you can see how well it’s been kept! MOVEMENTS X Axis 762 mm, Y Axis 406 mm, Z Axis 508 mm Spindle Nose to Table (~ max) 610 mm, Spindle Nose to Table (~ min)n 102 mm SPINDLE Max Rating 30.0 hp 22.4 kW, Max Speed 12000 rpm, Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm, Drive System Inline Direct-Drive, Taper BT40, Bearing Lubrication Air / Oil Injection, Cooling Liquid Cooled TABLE Length 914 mm, Width 356 mm, T-Slot Width 15.90 mm to 16.00 mm T-Slot Centre Distance 125 mm, Number of Std T-Slots 3, Max Weight on Table 680 kg FEEDRATES Max Cutting 21.2 m/min, Rapids on X 35.6 m/min, Rapids on Y 35.6 m/min, Rapids on Z 35.6 m/min AXIS MOTORS Max Thrust X 8874 N, Max Thrust Y 8874 N, Max Thrust Z 13723 N TOOL CHANGER Type SMTC, Capacity 30+1 Max Tool Diameter (full)64 mm, Max Tool Diameter (adjacent empty) 127 mm Max Tool Length (from gage line) 279 mm, Max Tool Weight 5.4 kg, Tool-to- Tool (avg) 1.8 s Chip-to-Chip (avg) 2.4 s GENERAL Coolant Capacity 208 L, AIR REQUIREMENTS METRIC, Air Required 4 scfm @ 100 psi / 113 L/min @ 6.9 bar, Inline Air Hose 3/8 in, Coupler (Air) 3/8 in, Air Pressure Min 80 psi 5.5 bar ELECTRICAL SPECIFICATION Input AC Voltage (3 Phase) - High* 440 VAC, Full Load Amps (3 Phase) - High* 35 A
