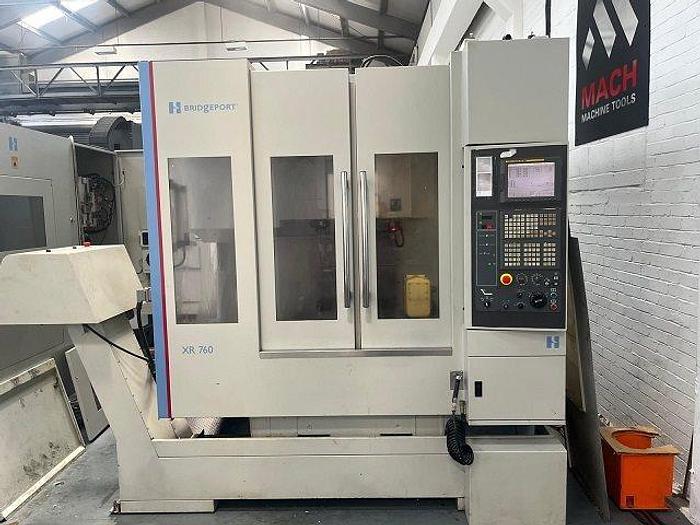

Hardinge Bridgeport XR 760

A 2007 Built Hardinge Bridgeport XR760 with Fanuc 18iM control, 12,000 RPM RPM spindle with through coolant, 30 tool rapid ATC & swarf conveyor X Axis 760mm, Y Axis 610 mm, Z Axis 610 mm Working Surface 1000 x 600mm, Table Load 900 kg, Number of T-Slots 5, T-Slot Size 18 mm, T-Slot Center Dimension 100 mm Table Surface to Spindle Gauge Plane Distance 100 to 710 mm Feedrate Range (X and Y Axis) .0025 - 20 m/mm Feedrate Range (Z Axis) .0025 - 20 m/mm Ball Screw Dia. and Pitch (X and Y Axis) 45 x 16 mm, Z Axis 45 x 12 mm, Spindle 12,000 RPM Fanuc Motor HP Rating (S6 40%) 25Kw, Torque (S6 40%) 159.2Nm, Spindle Taper BT 40 Magazine Capacity 30 Tools Max. Tool Diameter 125 mm (adjecent pocket) 80 mm Max. Tool Length 300mm, Max. Tool Weight 7 kg, Coolant and Chip Management Swarf Removal Chip Conveyor, Coolant Tank Capacity 355L, Wash Down Standard, Wash Gun Standard, Cutter Air Blaster Standard, Through Spindle Coolant Accuracy - ISO 230-2. Positioning - A 0.010 mm, Repeatability - R 0.004 mm, Machine Size, Machine Dimensions (WxD) 2528 x 3000 mm. Electrical Supply (Input)—Balanced 3-Phase 50 or 60 Hz, Power 25 KVA, Voltage, Compressed Air (Pressure / Flow) 4.9 cfm, Coolant Flow Rate at Cutter 160 L/min. Through Spindle Coolant Pressure 20 bar (Std) Washdown 140 L/min
