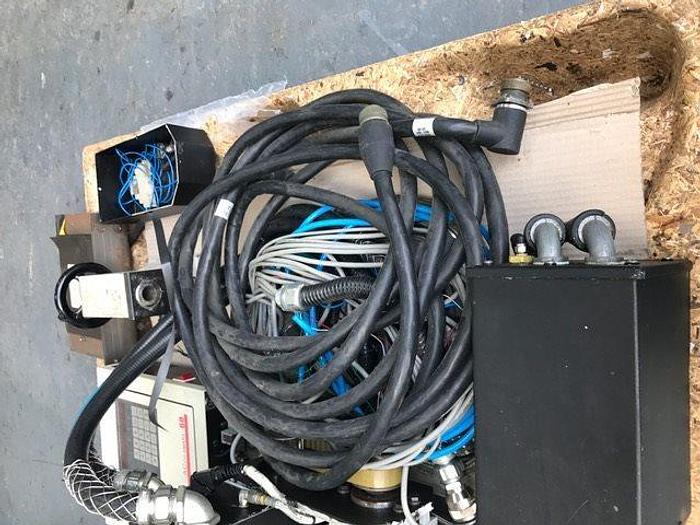

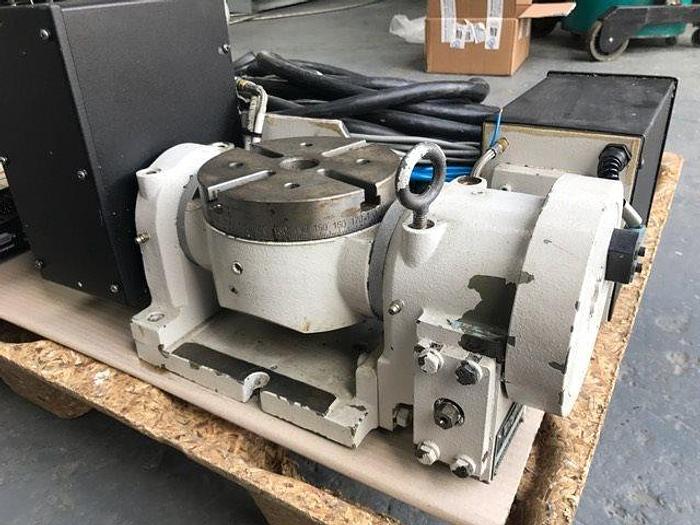

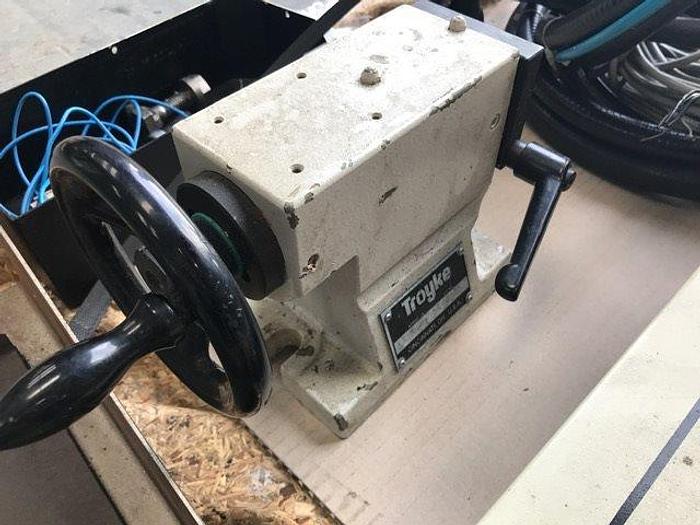

Troyke CTL 6.5-C 5 Axis Unit

Troyke CTL 6.5-C 5 Axis UnitStandard CTL 6.5 Series Rotary Table Features 6.5" table diameters Dual lead worm set simplifies backlash adjustment C907 bronze worm gears and a hardened and ground worms running in a bath of oil High precision spindle bearings Turcite bearing surface Internal pneumatic brake (Rotary Axis) Precision ground surfaces Zero return / home switches (Both Axis) +/- overtravel limit switches (Tilt Axis) Rotary Axis Specifications: · Turntable Diameter (MM) 6.50 (165) · Standard Thru Hole Dia (MM) 1.181 (30.0) · Oversize Thru Hole Dia (MM) N/A · Maximum Load Capacity (KG) 75 (34) · Faceplate T-Slot Width (MM) .47 (12) x 4 · Max. Speed Range (STD Ratio) N/A · Continuous Torque LBS-FT (NM) N/A · Brake Method Pneumatic · Brake Torque LBS-FT (NM) 125 (169) · STD. Total Angular Accuracy +/-60 sec. · STD. Repeatability +/-10 sec. · Unit Weight lbs. (KG) 200 (91) · Ship Weight lbs. (KG) 275 (125)
