XYZ e-Turn 1430

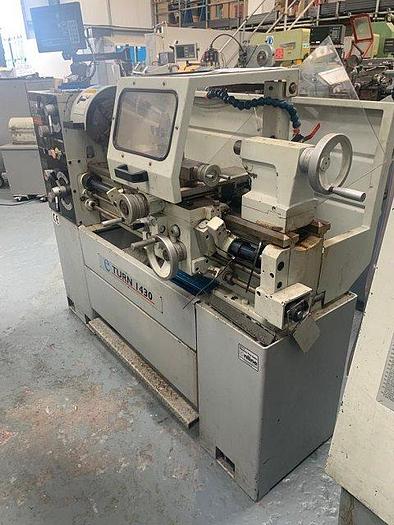

Used 2013 XYZ eTurn 1430 gap bed manual lathe

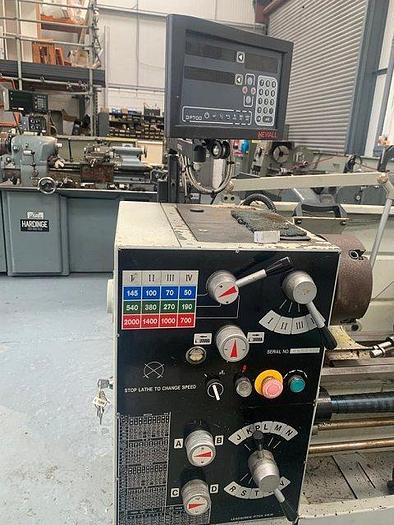

lightly used ex-college, with 3 & 4 jaw chucks, fixed steady, 4 way tool posts, tailstock, chuck and lead screw guards, low volt light and 2 Axis Newall digital readout. Swing over bed 356mm (14") Swing over cross slide 220mm (8.6") Swing in Gap 515mm (20") Gap in front of faceplate 135mm ( 5.25") Spindle bore 38mm (1.5") 12 Speeds 50 -2000 rpm Tailstock travel 90mm Tailstock taper MT3 Distance between centres 750mm (30") Spindle motor 3 HP Spindle inch button Hardened bed Machine weight 700Kg Standard Equipment Square 4 way toolpost 150mm (6") 3 jaw chuck Foot brake Metric lead screw (Guarded) Telemechanique electrics Full length splash guard Coolant Work light Camlock spindle D1-4Chuck Guard Tool Post Guard Two dead centres C E Approval Included Options Newall 2-Axis DRO 200mm 4 Jaw Chuck Fixed Steady
