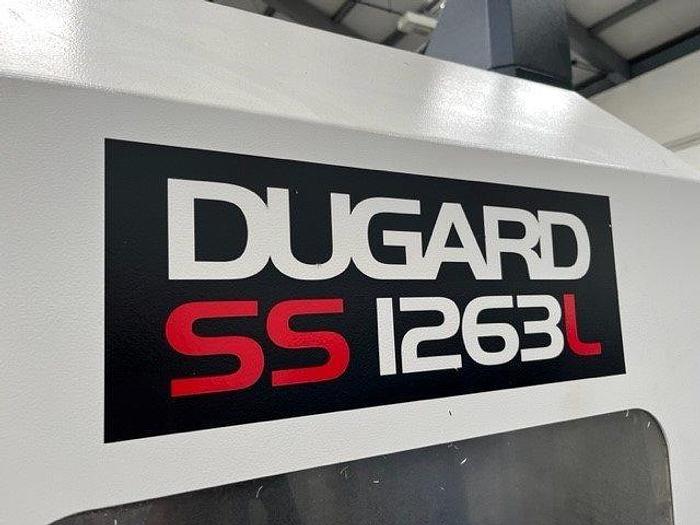

Dugard SS1263L

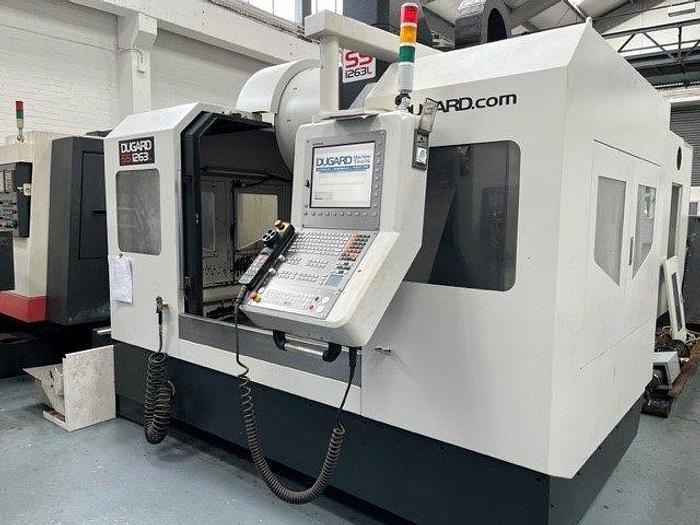

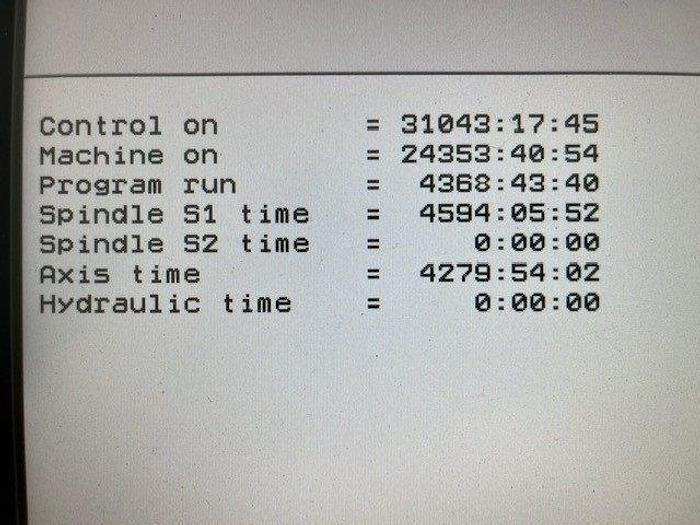

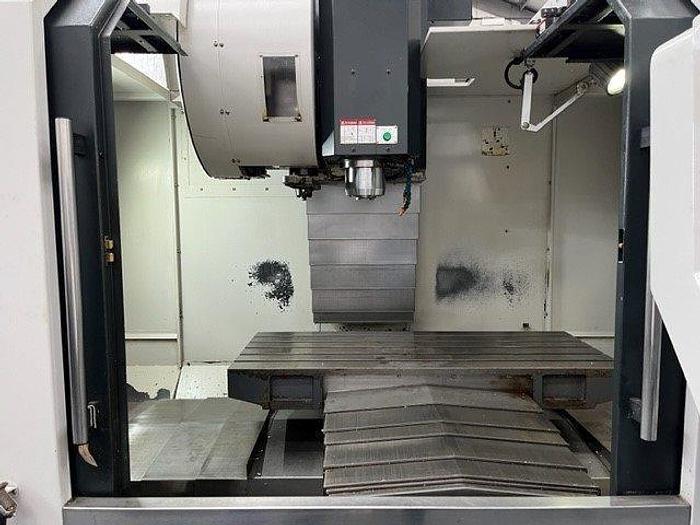

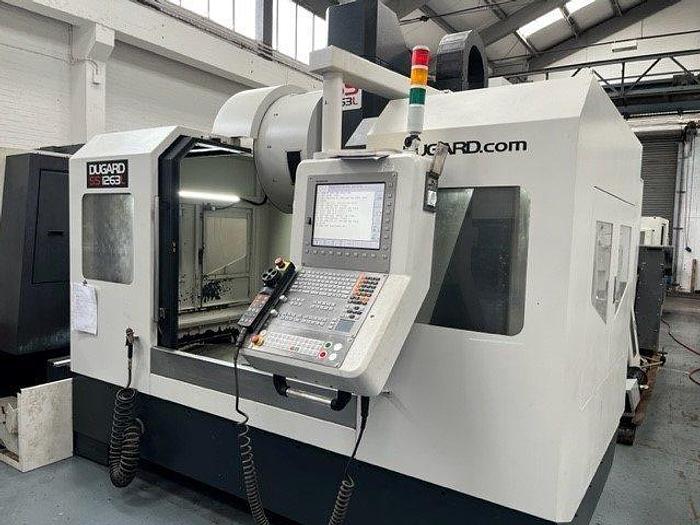

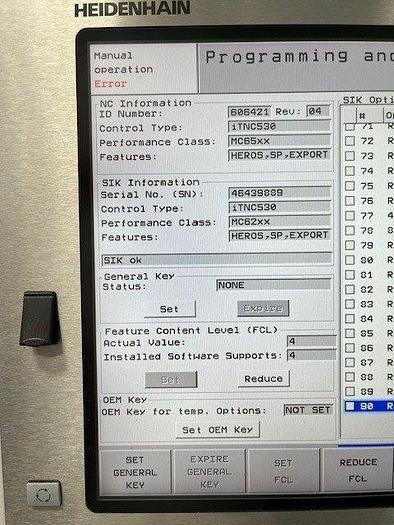

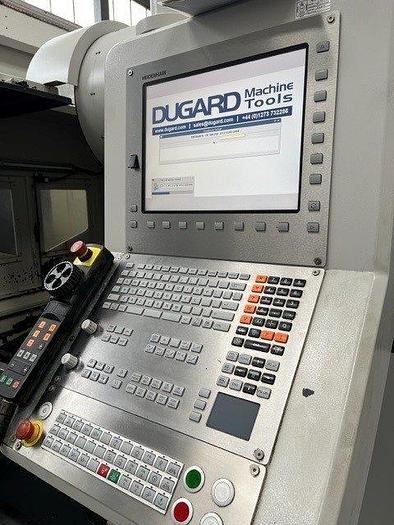

Dugard SS1263L Heavy Duty 3-Axis VMC with, Heidenhain i530 control, 12,000 RPM spindle, through spindle coolant, 1200mm X Axis. table size 1450mm x 600mm. 1200kg table capacity. 4565 hours spindle run X Axis 1200mm Y Axis 630mm Z Axis 600mm Spindle nose to table surface 100~700mm Spindle centre to column 710mm Spindle nose to telescopic guard 630mm Table size 1450 x 600mm T-slot 18 x 5 x 100mm Max table loading capacity 1200kg Speed/transmission 12,000rpm direct drive Rapid feed X/Y/Z 30 x 30 x 30 m/min Cutting feed X/Y/Z 1~20m/min Tool magazine BBT40 / 30 tools Tool selection Bi-directional, random type (ARM type ATC) Max tool diameter 76mm Tool dia without adjacent tools 127mm Max tool length 300mm Max tool weight 7kg X/Y/Z feed motors α 12 kW Spindle motor (Heidenhain) Direct drive 15 kW Coolant motor 1.27kW Coolant tank capacity 350L Air pressure required 6kg/cm2 Electric power required 30KVA Gross weight 9200kg
