Haas VF3-DCE

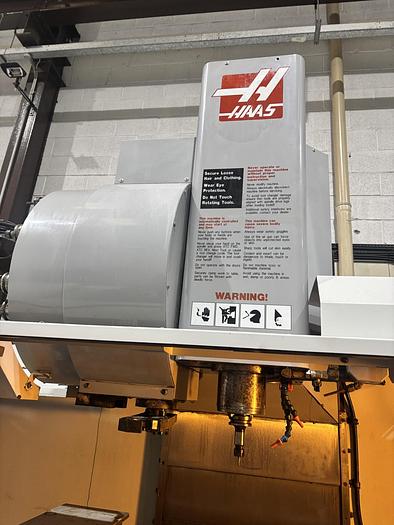

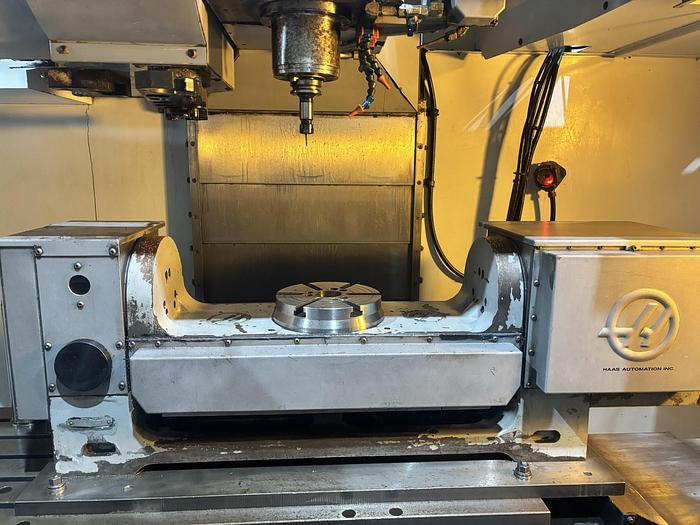

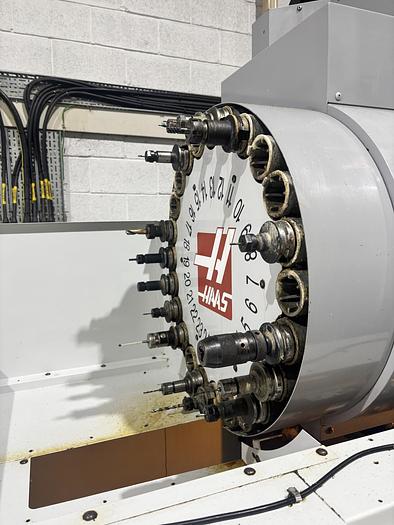

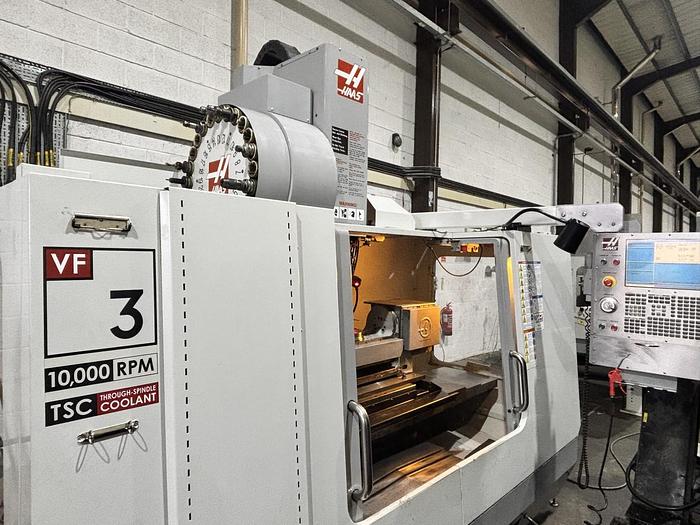

Used 2008 Haas VF3-DCE (so has Data Communication. Equipment included for communication for offline storage/programming) Machine is fitted with a Haas 5-Axis trunnion table, extended 24 tool side mount ATC & through coolant. X Axis 40.0” 1016 mm Y Axis 20.0” 508 mm Z Axis 25.0” 635 mm Spindle Nose to Table (~ max) 29.2” 742 mm Spindle Nose to Table (~ min) 4.2” 107 mm SPINDLE Max Rating 30.0 hp 22.4 kW Max Speed 12000 rpm Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm Drive System Inline Direct-Drive Taper BT40 Bearing Lubrication Air / Oil Injection Cooling Liquid Cooled TABLE Length 48.0” 1219 mm Width 18.0” 457 mm T-Slot Width 0.626” to 0.630” 16.00 mm T-Slot Centre Distance 3.15” 80 mm Number of Std T-Slots 5 Max Weight on Table (evenly distributed) 1750 lb 794 kg
